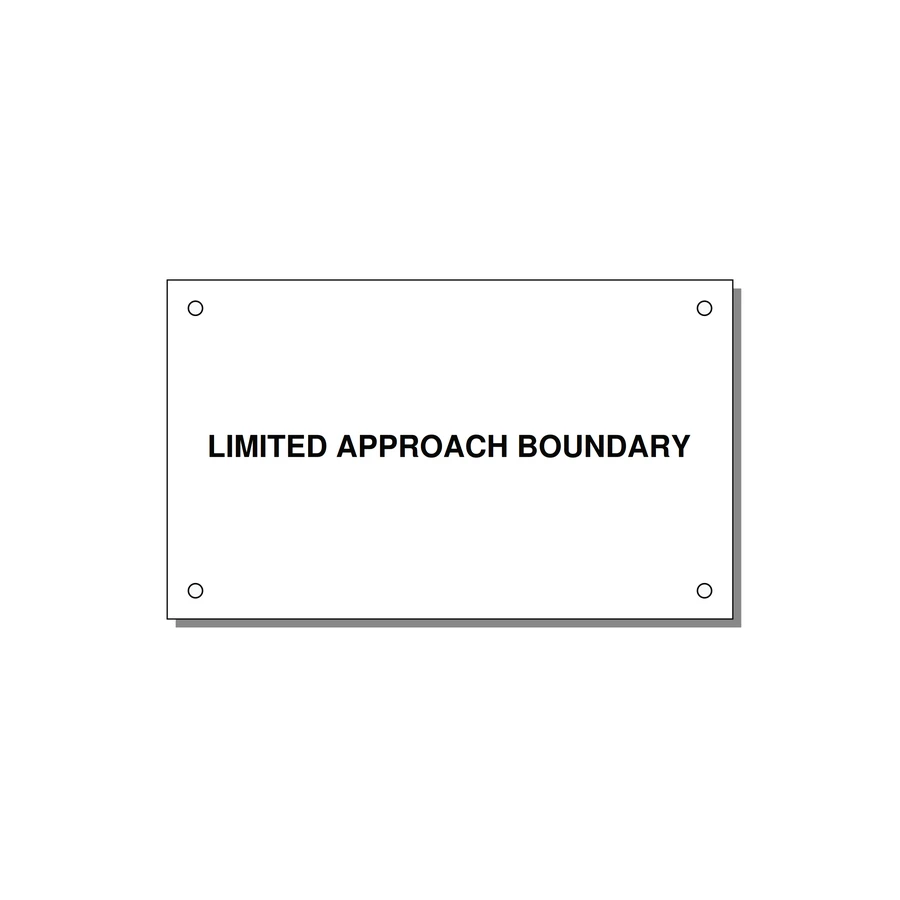

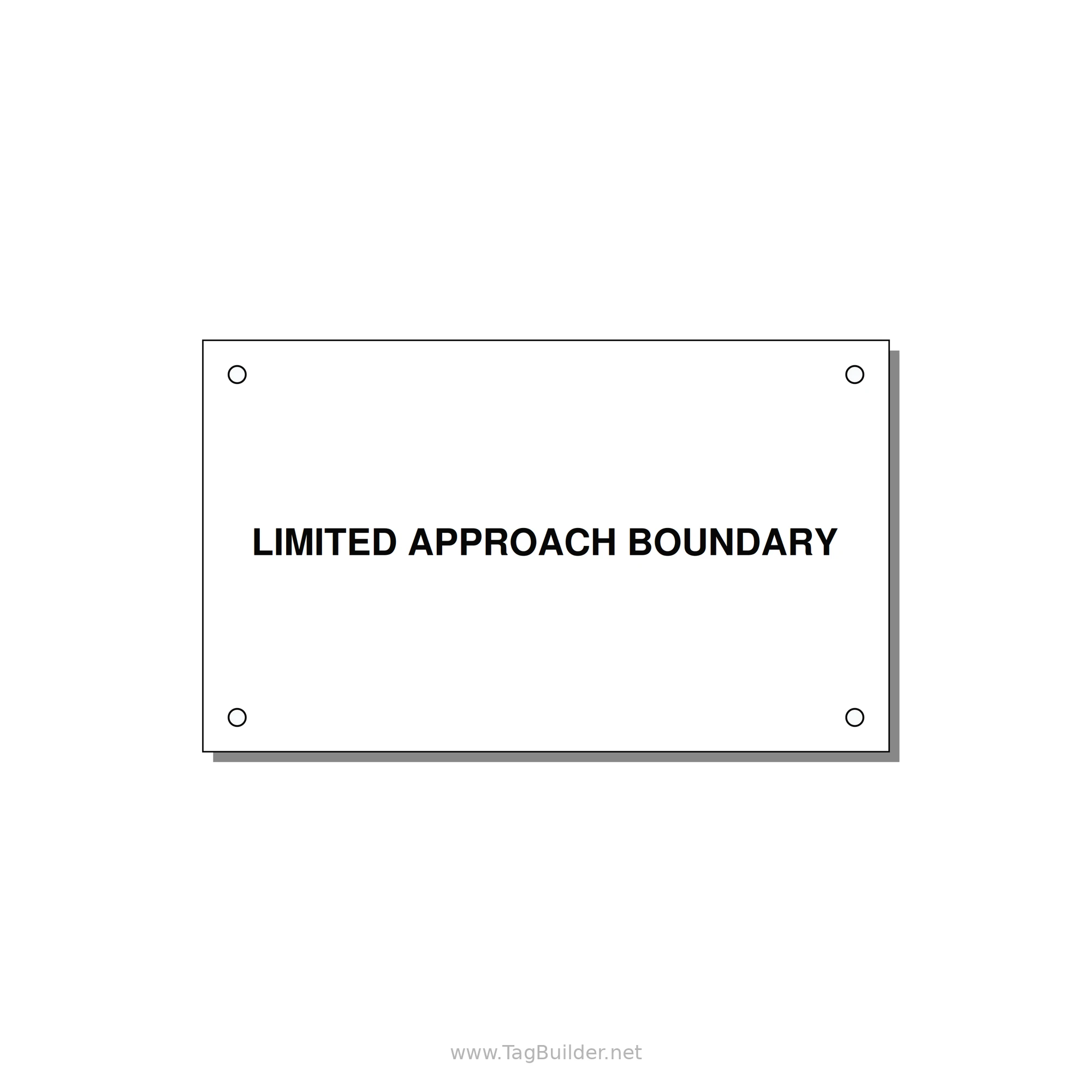

LIMITED APPROACH BOUNDARY Safety Label – 5" × 3" Black on White

"LIMITED APPROACH BOUNDARY" label, 5" × 3": black text on a white background, engraved so the wording lasts. The "LIMITED APPROACH BOUNDARY" marker turns a number from a safety study into something visible in the room.

For use on barrier stands, floor markers and equipment fronts around exposed energized gear.

Marks the distance from exposed live parts inside which only qualified people, or those they escort, should enter. The distance varies with voltage and is usually set by the site's electrical safety study.

Where it's used: Used on floor markers, barrier stands and the fronts of switchgear or equipment rooms around exposed energized gear.

• Wording: "LIMITED APPROACH BOUNDARY" (1 line, bold lettering)
• Size: 5" × 3" (127 × 76 mm), a large plate for doors, walls and big equipment where it has to be seen from a distance.
• Color: Black text on a white background. Black on white is the easiest combination to read and suits light-colored panels and enclosures.
• Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
• Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
• Corners: Square-cut corners and clean edges.

Get the distance from your safety study and place the marker at that spot, so the words mean something on the floor. Usually ordered by electrical safety coordinators and plant maintenance teams. Also called: limited approach label, shock boundary marker.

Need different wording, a color change or another size? Press Customize on this page to edit this design; there's no minimum order. Each piece is made to order in Waterford, PA (Erie County) and ships in 2–4 business days.
