WARNING / STORED ELECTRICAL ENERGY / WAIT ___ MINUTES AFTER OFF / VERIFY DISCHARGE / BEFORE SERVICING Engraved Label – 4" × 2" Black on Orange
Black on Orange
TB-RCT-40X20-BO-H-034579

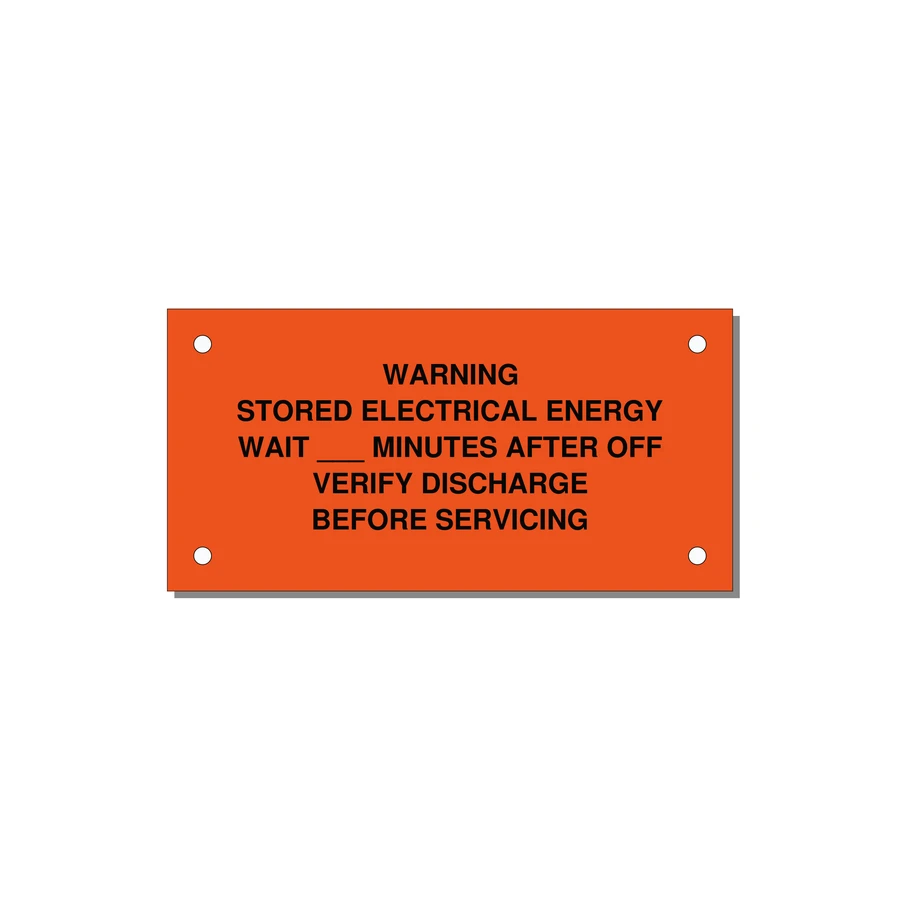

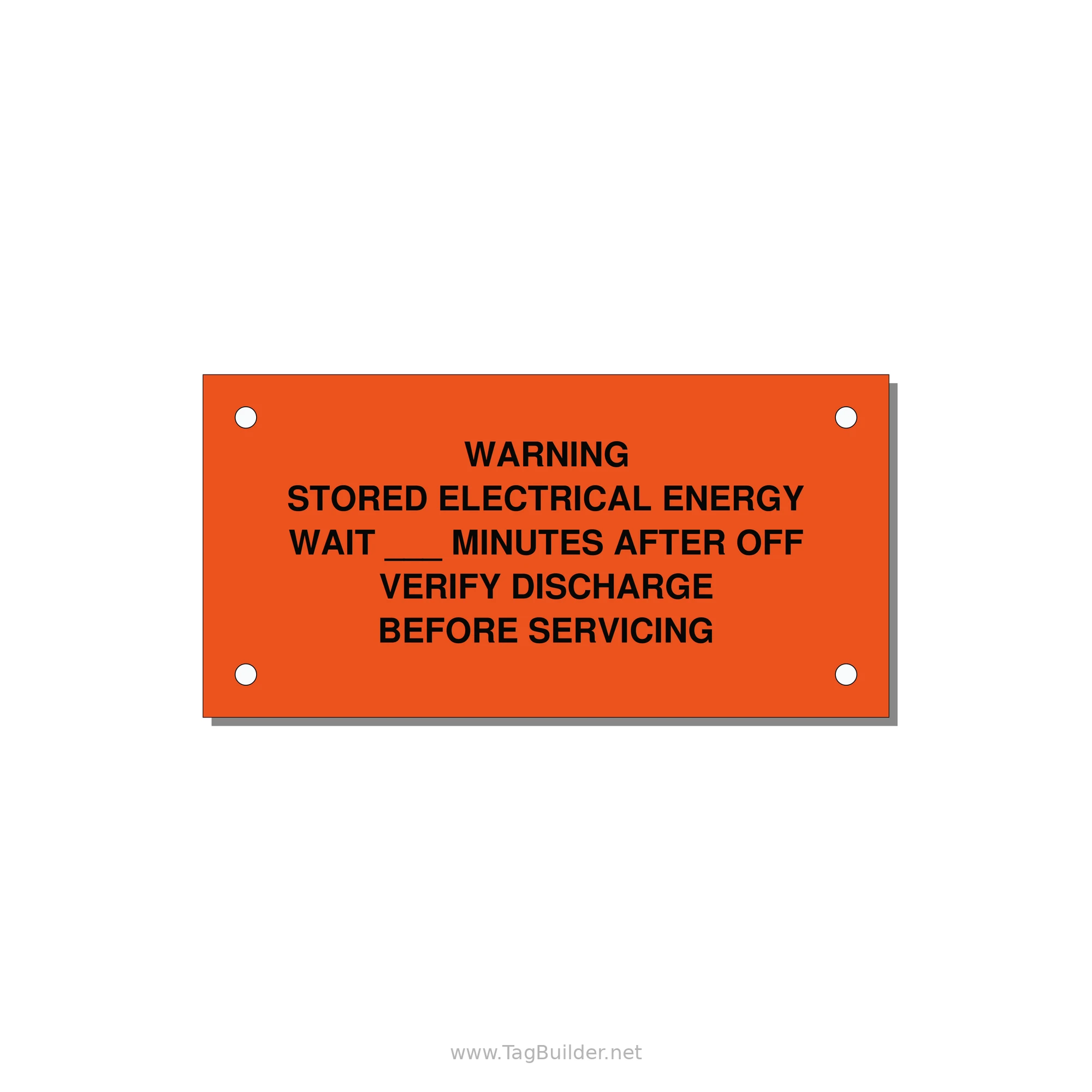

"WARNING / STORED ELECTRICAL ENERGY / WAIT ___ MINUTES AFTER OFF / VERIFY DISCHARGE / BEFORE SERVICING" label, 4" × 2": black text on an orange background, engraved so the wording lasts. Pre-drilled mounting holes.
Shipping at checkout
Need a whole set? Send your list.
Spreadsheet, drawing, panel schedule or photo. We build every tag, price the set, and email a proof the same business day. Nothing is charged until you approve.
- No minimum, no setup fee. One tag or a thousand.
- Ships in 2–4 business days. Rush available at checkout.
- Quantity pricing. The price per tag drops as the set grows.
- Paying by PO? Net terms open after your first order, once your company details are on file. First order is by card.
Description
"WARNING / STORED ELECTRICAL ENERGY / WAIT ___ MINUTES AFTER OFF / VERIFY DISCHARGE / BEFORE SERVICING" label, 4" × 2": black text on an orange background, engraved so the wording lasts. This "Verify Discharge" label sits on the unit so the wait time is not left to memory.
For use on the covers of VFDs, servo drives, inverters and capacitor banks, with the wait time written in.
Warns that capacitors keep a charge after power is off. It gives a wait time before opening the unit and tells the reader to confirm the charge has drained.
Where it's used: Variable frequency drives, servo drives, inverters, power supplies and capacitor banks, on the cover or door of the unit.
- Wording: "WARNING / STORED ELECTRICAL ENERGY / WAIT ___ MINUTES AFTER OFF / VERIFY DISCHARGE / BEFORE SERVICING" (5 lines, bold lettering)
- Size: 4" × 2" (102 × 51 mm), the most popular size for equipment, panel and door labels.
- Color: Black text on an orange background. Black on orange is commonly used for warning-level markings and stands out on grey equipment.
- Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
- Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
- Corners: Square-cut corners and clean edges.
Take the wait time from the drive manufacturer's manual for that exact unit, since it varies, and engrave that number. Usually ordered by maintenance technicians and panel builders. Also called: capacitor discharge warning, VFD wait time label, stored energy label.
Want it to say something else, or in a different color or size? Customize opens this exact design so you can change it, and you can order one piece or a few hundred. Made to order in Waterford, Pennsylvania and shipped in 2–4 business days.
