WARNING / ARC FLASH & SHOCK HAZARD / NOMINAL VOLTAGE: ___ / ARC FLASH BOUNDARY: ___ / INCIDENT ENERGY: ___ CAL/CM² / WORKING DISTANCE: ___ IN / PPE

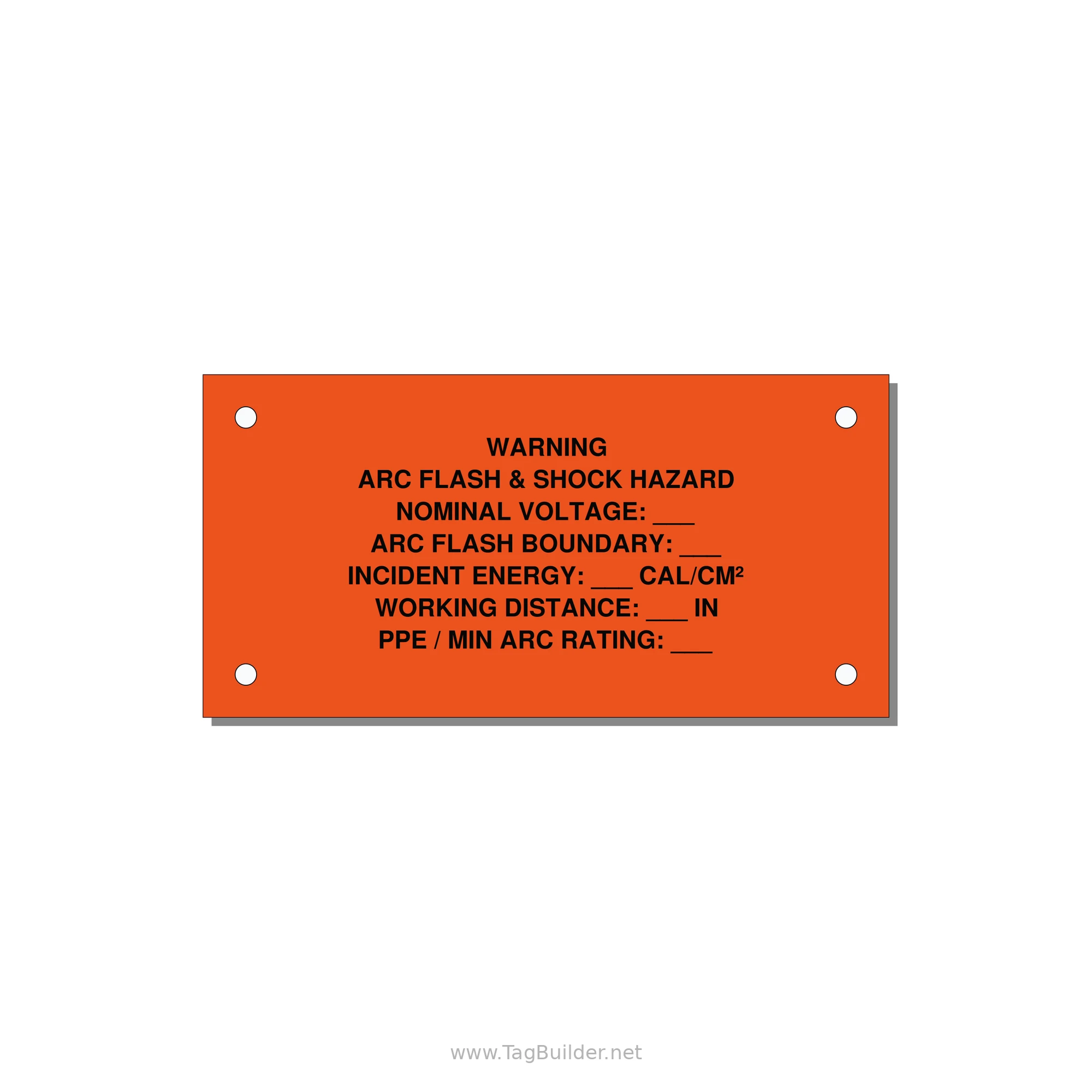

"WARNING / ARC FLASH & SHOCK HAZARD / NOMINAL VOLTAGE: ___ / ARC FLASH BOUNDARY: ___ / INCIDENT ENERGY: ___ cal/cm² / WORKING DISTANCE: ___ in / PPE / MIN ARC RATING: ___" label, 4" × 2": black text on an orange background, engraved so the wording lasts. The "ARC FLASH & SHOCK HAZARD" label carries the study numbers for one piece of equipment.

For use on switchgear, panelboards, MCCs and disconnects to post the arc flash study values for each piece of gear.

This is a full equipment label with blanks for voltage, boundary distance, incident energy, working distance and the minimum arc rating of gear. Together they tell a worker the hazard level at that specific piece of equipment.

Where it's used: Switchgear, panelboards, motor control centers, and disconnects, usually on the front where it can be read before the cover is opened.

• Wording: "WARNING / ARC FLASH & SHOCK HAZARD / NOMINAL VOLTAGE: ___ / ARC FLASH BOUNDARY: ___ / INCIDENT ENERGY: ___ cal/cm² / WORKING DISTANCE: ___ in / PPE / MIN ARC RATING: ___" (7 lines, bold lettering)
• Size: 4" × 2" (102 × 51 mm), the most popular size for equipment, panel and door labels.
• Color: Black text on an orange background. Black on orange is commonly used for warning-level markings and stands out on grey equipment.
• Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
• Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
• Corners: Square-cut corners and clean edges.

Fill every blank from your own arc flash study before ordering, and send the numbers with the order so they are engraved correctly. Usually ordered by electrical contractors and plant engineers. Also called: arc flash label, arc flash equipment label, incident energy label.

This design is a starting point: press Customize to change the wording, color or size, then order as few or as many as you need. Made to order in Waterford, PA and on its way in 2–4 business days.
