PANEL A Panel Label – 2.5" × 1" White on Black
White on Black
TB-RCT-25X10-WB-H-742443

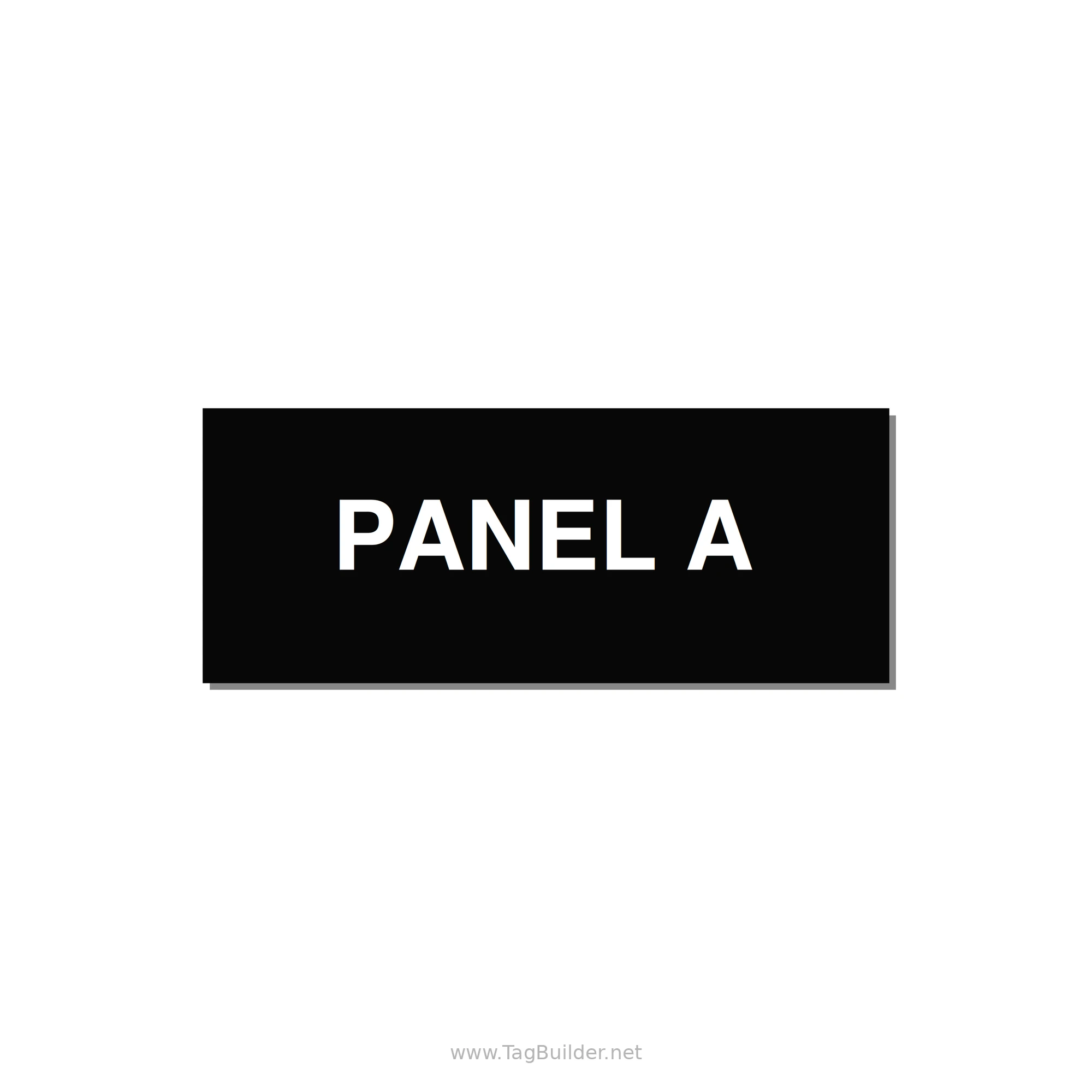

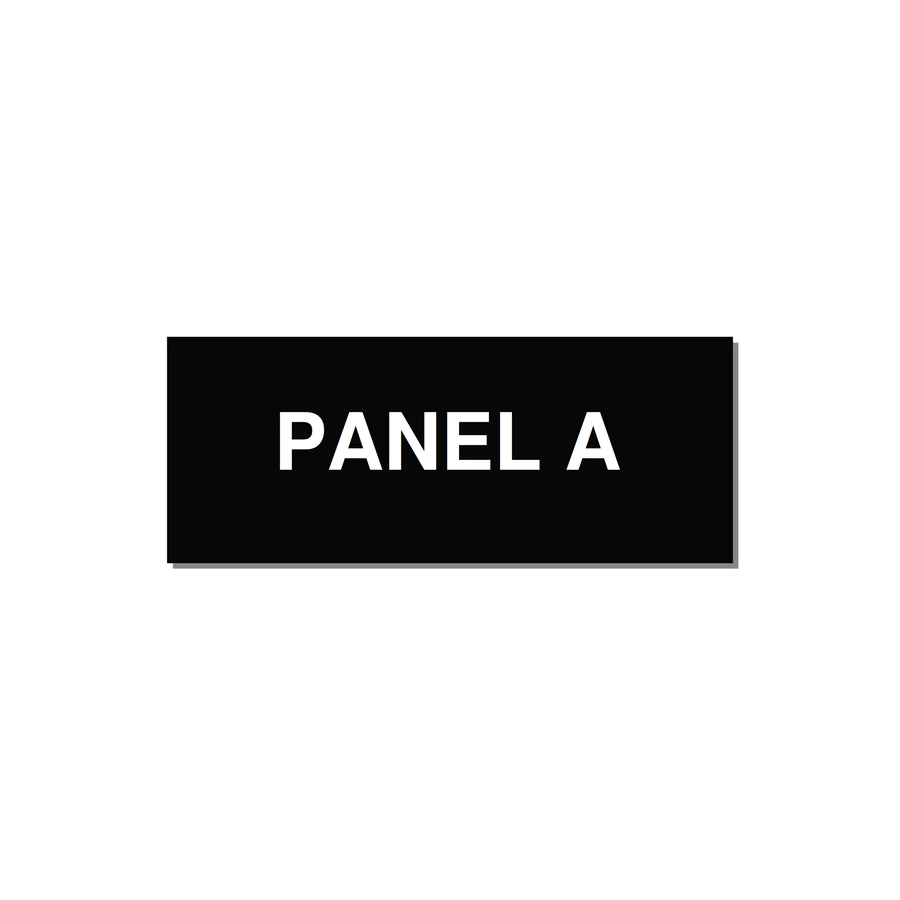

A 2.5" × 1" label engraved "PANEL A" in white text on a black background. Pre-drilled mounting holes. A name for an electrical panel, telling the reader which one they are standing at.
Shipping at checkout
Need a whole set? Send your list.
Spreadsheet, drawing, panel schedule or photo. We build every tag, price the set, and email a proof the same business day. Nothing is charged until you approve.
- No minimum, no setup fee. One tag or a thousand.
- Ships in 2–4 business days. Rush available at checkout.
- Quantity pricing. The price per tag drops as the set grows.
- Paying by PO? Net terms open after your first order, once your company details are on file. First order is by card.
Description
A 2.5" × 1" label engraved "PANEL A" in white text on a black background. Use a "PANEL A" label on the panel cover and at the feeder that supplies it.
For use on the cover of distribution or branch circuit panel A and its feeder disconnect.
A name for an electrical panel, telling the reader which one they are standing at. It matches the panel to the one shown on drawings and circuit directories.
Where it's used: Usually on the front cover or door of a distribution or branch circuit panel, and sometimes on the feeder disconnect that supplies it.
- Wording: "PANEL A" (1 line, bold lettering)
- Size: 2.5" × 1" (64 × 25 mm), a small size for tight spots like device faces and narrow rails.
- Color: White text on a black background. White on black is the classic high-contrast look for general identification and suits dark enclosures and panels.
- Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
- Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
- Corners: Square-cut corners and clean edges.
Check the panel names on your one-line drawing or schedule first so the label reads exactly as the paperwork does. Usually ordered by electricians, electrical contractors and facility managers. Also called: panel A label, panel designation tag, breaker panel ID.
This design is a starting point: press Customize to change the wording, color or size, then order as few or as many as you need. Made to order in Waterford, PA and on its way in 2–4 business days.
