UL 508A Control Panel Nameplate Requirements: What Has to Be on the Plate

A panel passes UL 508A construction review, ships, and then a field inspector can't verify the SCCR or find the disconnect marking — and the job stalls at final approval.

What Has to Be on the Nameplate

UL 508A treats the nameplate as part of the panel's listing, not a courtesy label. An inspector checking a panel against its file expects to find a specific set of markings on it, and if one is missing or doesn't match what's in the panel, that's an open item at final inspection. The core list is short but each line has requirements behind it:

• Manufacturer identification — name, trademark, or UL file number tying the panel back to the shop that built it.
• Supply voltage, phase, frequency, and full-load current — the electrical characteristics the panel was built to accept.
• Short-circuit current rating (SCCR) — a single number, in amps, with a documented basis behind it.
• Industrial Control Panel designation — the plate identifies what the assembly is.
• Enclosure type rating — the UL Type number for the enclosure, not just “NEMA rated.”
• Wiring diagram or drawing index number — ties the physical panel to its as-built prints.
• Suitable for use as service equipment — only where the panel is actually built and listed for that use.
• Disconnect and multiple-source markings — required when the panel has more than one power source.

Each of those gets its own section below, plus a sample layout you can adapt.

Manufacturer Identification and Traceability

The nameplate has to identify who built the panel — company name or registered trademark, plus the UL file number under which the panel is listed. This is what lets an AHJ or a UL field representative trace the panel back to the shop's UL 508A procedure and Follow-Up Service inspection results. Most shops add a date code or serial number here too, even though it's not strictly required, because it makes tracking and revision history easier down the line. If your manufacturer identification isn't linked to an active UL file, the rest of the markings don't mean much — the file number is what an inspector actually checks against.

Voltage, Phase, Frequency, and Full-Load Current

These four values describe what the panel expects to be fed and what it will draw. Supply voltage is the rated operating voltage (or range) the panel is designed for — 480Y/277V, 240V, 600V, whatever applies. Phase and frequency (typically 60 Hz in North America) round out the source description.

Full-load current (FLC) is calculated, not guessed — it's derived from the connected loads using the applicable NEC Article 430 methods for motor loads plus any additional non-motor load, and it has to match what's actually installed in the panel. A common inspector finding is a nameplate FLC that doesn't reconcile with the panel's actual load schedule after a field change order added a drive or heater circuit without updating the tag.

SCCR: The Rating and Its Basis

The short-circuit current rating is the number that tells an installer the maximum available fault current the panel can withstand without creating a hazard. It's marked in amps RMS symmetrical at a stated voltage — for example, 10,000 A at 480V.

What trips shops up isn't the marking itself, it's the basis behind it. UL 508A Supplement SB lays out how a shop determines SCCR: either by testing, or by the component method, where the panel's rating is set by whichever component in the fault current path — breaker, disconnect, contactor, terminal block — has the lowest individual rating. If nobody documents which component set the number, or the calculation wasn't redone after a component swap, the tag is now wrong even though it still shows a specific value. Keep the SCCR worksheet with the panel's build file, not just in someone's head.

Enclosure Rating, Service Equipment, and Disconnect Marking

Enclosure type rating is marked using the UL Type designation (Type 1, Type 12, Type 4X, and so on) that matches the actual enclosure the panel is built in — not a generic “NEMA rated” claim. A Type 12 enclosure with a Type 1 nameplate, or vice versa, is a mismatch an inspector will catch by looking at the door gasket and the vent openings.

The phrase suitable for use as service equipment only belongs on the plate when the panel is actually built for that purpose — bonding provisions, a main bonding jumper, and a listed service disconnect all have to be present to back it up. Adding it because a customer asked, without the construction to match, is a listing problem, not a convenience.

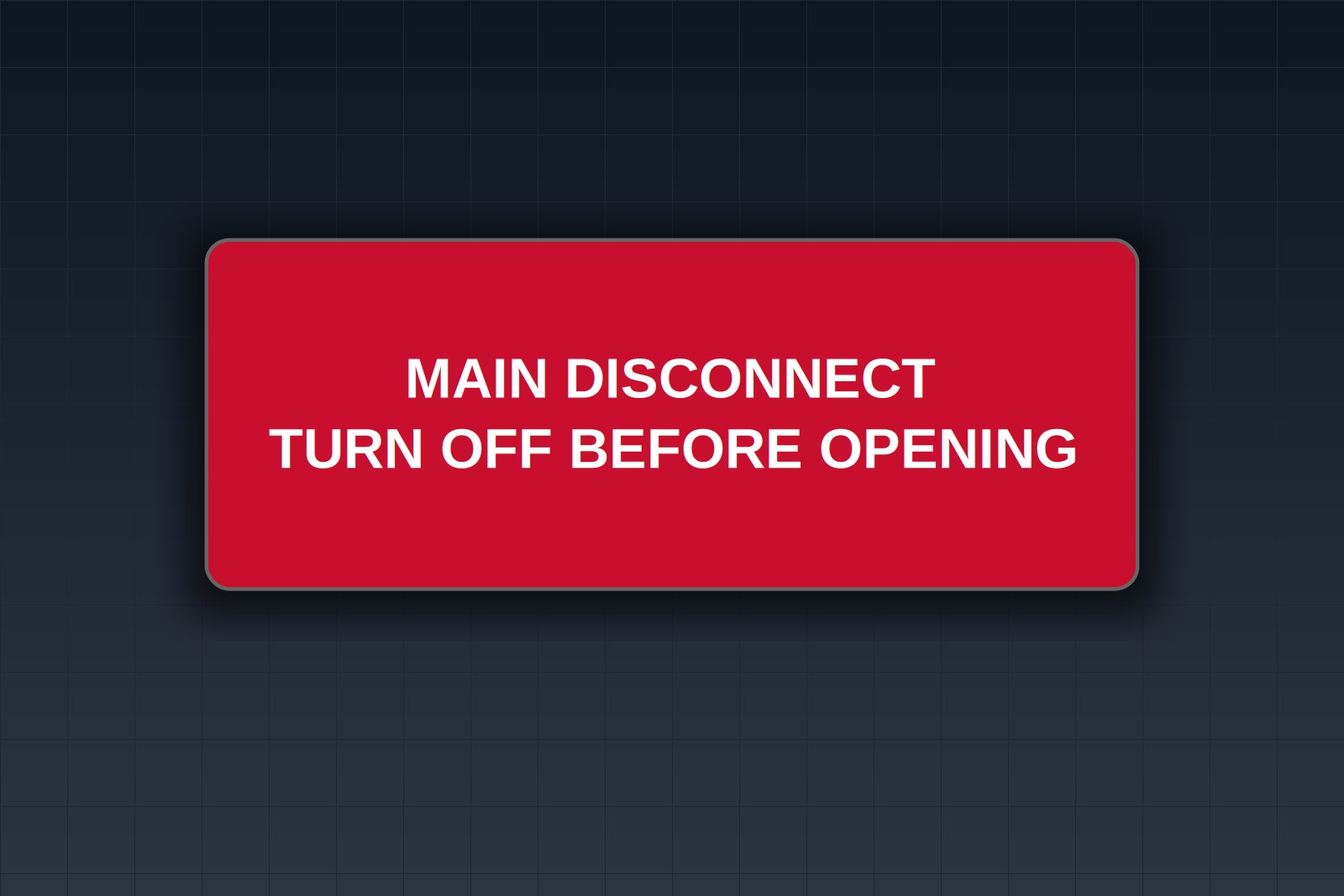

Where a panel has more than one source of power — a second feed, a generator input, a UPS tie — each disconnecting means has to be marked to indicate its purpose, per NEC 110.22, unless the layout makes the purpose self-evident. For machine-tool panels built to NFPA 79, the marking and nameplate data requirements in that standard's electrical equipment section apply on top of UL 508A — check which edition your AHJ has adopted, since the clause numbering has moved between editions.

Marking Location, Durability, and the Drawing Index Number

Two things matter beyond what's written on the plate: where it's mounted and how long it lasts. The nameplate has to be visible after field wiring is complete — not hidden behind a wireway cover, a cable duct, or a door that gets blocked once the panel is landed in its final location. Inspectors check this by opening the enclosure the way it will actually sit in the field, not on the shop floor with the door wide open.

Durability means the marking has to hold up to the environment the panel lives in — heat inside an enclosure, washdown outside one, UV on an outdoor lineup. Engraved two-ply plastic holds up well in most indoor industrial environments; engraved stainless is the better call for washdown, outdoor, or corrosive-service panels where a printed or adhesive label tends to degrade faster. See the equipment nameplate requirements guide for how that same durability logic applies across other equipment tagging, not just panels.

The wiring diagram or drawing index number on the nameplate ties the physical panel back to its as-built print set in the shop's files. When a service tech is standing in front of the panel years later, that number is what lets them pull the correct revision instead of guessing.

Sample Layout and Common Inspector Findings

Sample Nameplate Layout

A working layout you can adapt — field on the left, a plausible example value on the right:

What Inspectors Flag

• SCCR marked on the tag but no calculation or component basis in the build file.
• Enclosure Type on the nameplate that doesn't match the physical enclosure.
• Nameplate mounted where a wireway cover or duct blocks it once the panel is installed.
• Full-load current that doesn't reconcile with the as-built load schedule after a field change.
• Multiple power sources present with no disconnect purpose marking per NEC 110.22.
• Wiring diagram number on the tag that doesn't match the current revision on file.

Legend Plates and Device Identification Inside the Panel

The nameplate covers the panel as a whole. Inside it, legend plates identify individual devices — pushbuttons, selector switches, pilot lights, terminal blocks, the main disconnect — and those should match the reference designators on the wiring diagram the nameplate points to. A tech troubleshooting a fault shouldn't have to guess whether “PB-1” on the print is the start button or the e-stop; the legend plate on the panel face should say so in the same language as the drawing.

These don't carry the same listing weight as the panel nameplate itself, but a panel that's clean on the outside and unlabeled on the inside still fails a practical inspection, and it fails the maintenance crew six months later just the same. For control panels specifically, engraved plastic legend plates hold up better than adhesive labels under repeated door swings and panel heat — see the lamacoid vs. vinyl labels breakdown for the tradeoffs. Standard panel nameplates can cover both the UL 508A tag and the device-level legend plates on the same order.

Frequently Asked Questions

Does every industrial control panel need a UL 508A nameplate?

Only panels built and labeled to UL 508A carry these specific markings — a panel that isn't going through that listing process doesn't need a UL-format nameplate, though most of the same information (voltage, current, manufacturer) is still good practice to include. Confirm with your shop's UL procedure or your AHJ which panels on a given job require the listing.

What SCCR should I mark if nobody has calculated one?

Don't mark a number you can't back up. Work through the UL 508A Supplement SB component method, or a test, before the plate goes on — marking a rating without a documented basis is the kind of gap inspectors specifically look for.

Does the nameplate have to say the exact words “Industrial Control Panel”?

The designation needs to clearly identify the assembly as an industrial control panel per the current UL 508A marking requirements. Exact wording conventions can shift slightly between editions, so check your current copy or your UL procedure rather than copying an old template.

Can the wiring diagram number and the nameplate be combined into one plate?

Yes — many shops run the drawing index number as one line item on the same nameplate rather than a separate tag, as long as it stays legible and doesn't crowd out the other required fields.

What's the difference between the panel nameplate and the legend plates inside?

The nameplate is the panel's listing record — manufacturer, ratings, SCCR, enclosure type. Legend plates identify individual devices inside the panel so a tech can match what they're looking at to the wiring diagram. Both matter, but only the nameplate carries UL 508A marking requirements.

Who decides if a panel qualifies for “suitable for use as service equipment”?

That's a construction question, not a labeling preference — it depends on whether the panel includes the bonding and disconnect provisions that back up the claim. Confirm it with whoever is running your UL 508A procedure before it goes on the plate.

A UL 508A nameplate is a small plate carrying a lot of documentation behind it — get the SCCR basis, the enclosure type, and the disconnect marking right and the rest of the inspection tends to go smoothly. For panels that also need valve or component tags in the same run, the ring tag line covers that alongside the nameplate order, and the equipment nameplate requirements guide is a useful companion piece for non-panel equipment tagging on the same job.
