You have a red mushroom-head E-stop on a black panel and you are not sure what belongs behind it. The yellow plate is not decoration, and the wording and size matter more than most builds assume.
Important Disclaimer
This article is provided for general informational purposes only and does not constitute legal, safety, or professional compliance advice. Regulations, standards, and codes are subject to change and may be interpreted differently by authorities having jurisdiction (AHJ). Always consult with qualified safety professionals, licensed engineers, or legal counsel to determine the specific requirements applicable to your facility. TagBuilder is not responsible for any actions taken based on this information.
Why the legend plate matters
NFPA 79 (Electrical Standard for Industrial Machinery) and its international counterpart IEC 60204-1 both expect an emergency stop actuator to be red, and both expect the area immediately around the actuator to be yellow. The operator itself only supplies the red. The yellow has to come from somewhere else.
In most panels, that somewhere is the legend plate mounted behind the operator. If you install a bare red mushroom head straight onto a black or gray enclosure door, the red part is right and the yellow background is missing. Many reviewers read that as a marking gap, so the plate is part of the E-stop installation, not an accessory.
The standards also care about how the device is recognized in a hurry. A red head on a yellow field is readable across a room, in poor light, and by someone who has never run the machine. That is the whole point of the color pair.
What the standards say, in plain terms
This is a paraphrase. Clause numbers shift between editions, so work from the current published edition of each document and confirm with your AHJ or customer.
- NFPA 79: emergency stop actuators are red, with a contrasting yellow background immediately surrounding the device. The operator interface chapter also covers where stop devices must be reachable and how they are marked.
- IEC 60204-1: the same red-on-yellow pairing for emergency stop devices, and a requirement that the actuator be a self-latching type that needs a deliberate action to reset.
- ISO 13850: covers the emergency stop function itself, including that it is available and operable at all times and overrides other functions. It does not replace the color and marking rules above, it works alongside them.
For broader context on how the machinery standard treats device marking, see the NFPA 79 industrial machinery marking guide.
What the plate does not do
A legend plate supplies color and wording. It does not change the electrical rating, category, or third-party evaluation of the E-stop device behind it. Treat the plate as marking only, and keep the device documentation for the device.
Wording options
There is no single required phrase in every contract, but a few forms cover almost every machine.
| Wording | When it fits |
|---|---|
| EMERGENCY STOP | Single E-stop, enough plate area for two lines or a wide text field |
| E-STOP | Small plates, crowded pendants, or where the customer uses the short form |
| EMERGENCY STOP + location or zone | Several stops on one machine, such as EMERGENCY STOP CELL A |
| E-STOP + number | Numbered stops tied to a drawing, such as E-STOP 2 |
Black text on the yellow field is the usual choice because it holds contrast. Keep the wording in plain capitals with no abbreviations beyond E-STOP. If you also need START, STOP or RESET plates on the same panel, that is a separate question covered in the push-button legend wording guide.
Plate sizes for 22 mm and 30 mm operators
The operator size is the mounting hole, not the plate size. The plate has to be large enough that yellow is visible all the way around the red mushroom head, and the mushroom head is much larger than the hole.
- 22 mm operators: round yellow plates of about 60 mm in diameter are common. Some designs use a slightly smaller plate where a compact mushroom head is fitted.
- 30 mm operators: plates of about 75 to 80 mm in diameter are common, with larger plates where the mushroom head is oversized.
These are typical dimensions, not a rule. Measure the head you are actually installing, check the mounting depth, and confirm the plate leaves a visible yellow band around the head. Also confirm that the plate has the correct center hole and any anti-rotation key for your operator body.
Mounting notes
- Fit the plate between the operator and the door, under the locking ring, so it cannot spin or lift.
- Keep the plate flat. A warped plate lets the red head hide the yellow from an angle.
- On pendants and enclosures with a recessed pocket, check that the pocket does not clip the plate edge.
- Leave clear space around the plate so adjacent devices do not crowd the yellow field.
Numbering multiple E-stops on one machine
Once a machine has more than one E-stop, an operator in an emergency needs to know which one they pressed, and maintenance needs to know which one tripped. A simple scheme does both.
Pick one pattern and apply it everywhere:
- Number only: E-STOP 1, E-STOP 2, E-STOP 3, matching the electrical drawing.

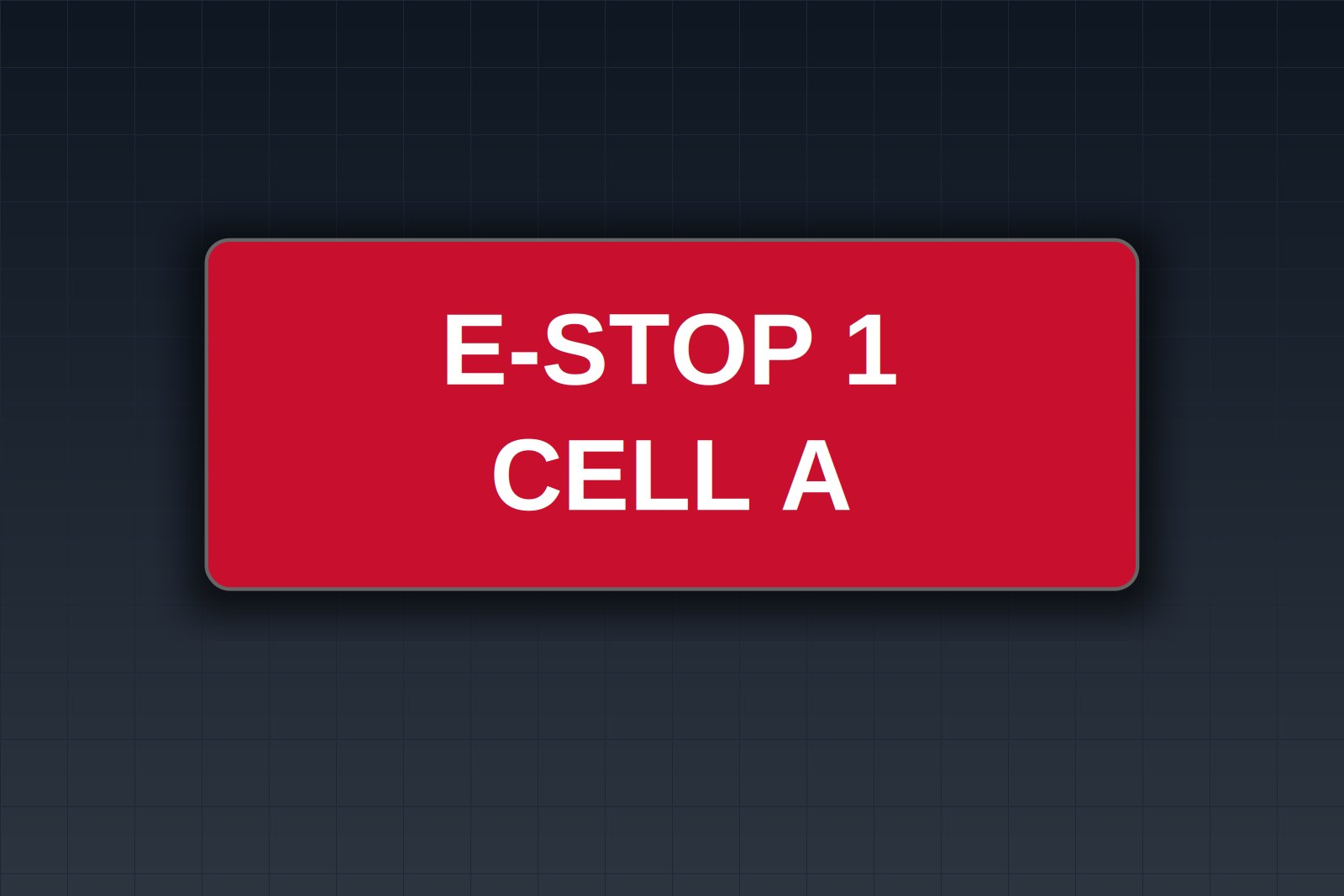

- Number plus zone: E-STOP 1 CELL A, E-STOP 2 CELL B.
- Zone only: EMERGENCY STOP INFEED, EMERGENCY STOP DISCHARGE.
Number plus zone is usually the most useful because it reads correctly on the machine and in the troubleshooting log.
Worked example: a 3-station packaging line
A packaging line has an infeed station, a case packer and a discharge station. Each has its own operator panel, and the case packer uses a heavier 30 mm operator. The numbering follows the electrical drawing left to right.
| Station | Plate wording | Operator | Plate size | Colors |
|---|---|---|---|---|
| 1 Infeed | E-STOP 1 INFEED | 22 mm | About 60 mm round | Black text on yellow |
| 2 Case packer | EMERGENCY STOP 2 CASE PACKER | 30 mm | About 75 mm round | Black text on yellow |
| 3 Discharge | E-STOP 3 DISCHARGE | 22 mm | About 60 mm round | Black text on yellow |
Notes on this list: station 2 uses the longer wording because the larger plate has room for it. Stations 1 and 3 use the short form so the text stays readable on the smaller plate. The numbers match the drawing, so a fault message that says E-STOP 3 sends maintenance to one known device.
Replacing a worn plate
Plates in washdown areas, near heat, or on busy pendants wear out. When you replace one, the goal is a plate that looks like the original.
- Photograph the existing plate and note the exact wording, including numbers and any zone suffix.
- Measure the center hole, the outer diameter and the plate thickness.
- Check the drawing for the wording, because a worn plate can be misread.
- Order the same wording, size and colors, then swap it with the machine locked out and the circuit de-energized per your site procedure.
Keeping the wording the same means the replacement matches the drawings, the training materials and the other stops on the machine.
Check the contract before you order
Some customers and contracts go beyond the base standard. Before you finalize wording, confirm the customer spec for:
- ISO symbols: some specs call for a graphic emergency stop symbol on the plate alongside, or instead of, text.
- Bilingual text: machines shipped to mixed-language sites sometimes need two languages on the same plate, which can force a larger plate.
- Customer standards: corporate specs sometimes fix a wording, a numbering scheme, or a plate diameter.
If the spec and the standard disagree, ask the customer to clarify in writing before engraving.
Order engraved red-on-yellow E-stop legend plates in 22 mm or 30 mm with your own station wording.
Frequently Asked Questions
Is a red mushroom head on a black panel acceptable?
Not by itself in most readings of NFPA 79 and IEC 60204-1, because the area immediately around the actuator is expected to be yellow. A yellow legend plate behind the operator supplies that background. Confirm with your AHJ or customer if you are unsure.
Does the plate have to say EMERGENCY STOP?
Not always. Many machines use E-STOP, and some use a symbol or bilingual text. The wording is often set by the customer spec, so check the contract before you choose.
Can I use one plate size for every E-stop?
Only if every operator and mushroom head is the same. The plate should leave a visible yellow band around the head, so a 30 mm operator with a larger head usually needs a larger plate than a 22 mm one.
Does a legend plate make the E-stop device listed or rated?
No. The plate is marking only. It does not change the rating or third-party evaluation of the device behind it, which comes from the device manufacturer.
How should I number E-stops on a large machine?
Match the numbers to the electrical drawing and add a zone name, such as E-STOP 1 CELL A. That way a pressed stop, a fault message and a drawing reference all point to the same device.
