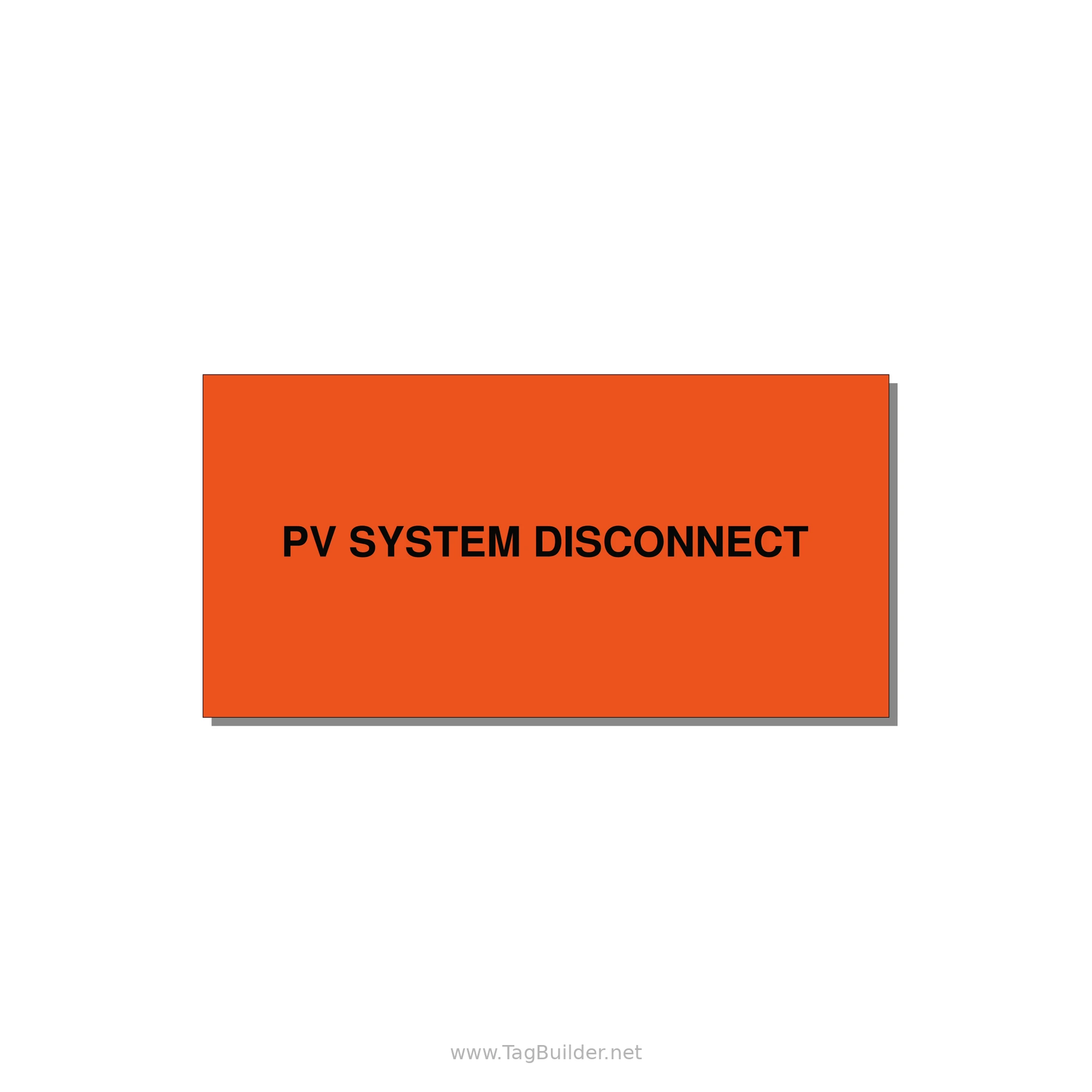

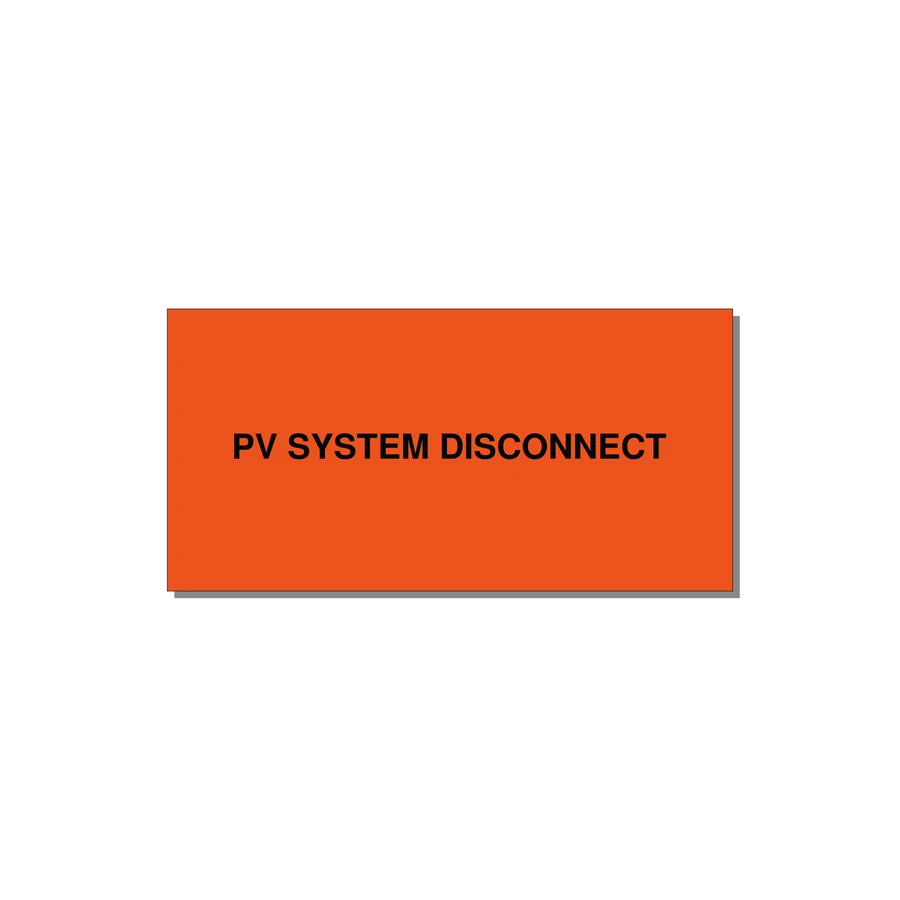

PV SYSTEM DISCONNECT Disconnect Label – 4" × 2" Black on Orange

"PV SYSTEM DISCONNECT" label, 4" × 2": black text on an orange background, engraved so the wording lasts. The "PV SYSTEM DISCONNECT" legend leaves no doubt which handle belongs to the solar array.

For use on the solar PV disconnect near the inverter, the service equipment or the array.

Identifies the switch that disconnects the solar photovoltaic system from the rest of the electrical system, so firefighters and electricians can find the right way to shut it off.

Where it's used: On disconnect switches near the inverter, at the service equipment, or at the array on rooftop and ground-mount solar installations.

• Wording: "PV SYSTEM DISCONNECT" (1 line, bold lettering)
• Size: 4" × 2" (102 × 51 mm), the most popular size for equipment, panel and door labels.
• Color: Black text on an orange background. Black on orange is commonly used for warning-level markings and stands out on grey equipment.
• Mounting: Peel-and-stick industrial adhesive back with no holes. Clean and dry the surface, then press it firmly in place.
• Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
• Corners: Square-cut corners and clean edges.

If the site has both a DC and an AC disconnect, confirm which one this wording belongs on before you order. Usually ordered by solar installers and electrical contractors. Also called: solar disconnect label, PV disconnect sign, photovoltaic disconnect label.

Need different wording, a color change or another size? Press Customize on this page to edit this design; there's no minimum order. Each piece is made to order in Waterford, PA (Erie County) and ships in 2–4 business days.
