Medical Gas Zone Valve Box Labels: NFPA 99 Wording for Gas, Rooms Served and Caution
The zone valve box in the corridor says "OR area," but it also feeds two recovery bays. When a surveyor or a nurse manager asks which rooms lose oxygen if you close it, nobody on the label can answer.
Important Disclaimer
This article is provided for general informational purposes only and does not constitute legal, safety, or professional compliance advice. Regulations, standards, and codes are subject to change and may be interpreted differently by authorities having jurisdiction (AHJ). Always consult with qualified safety professionals, licensed engineers, or legal counsel to determine the specific requirements applicable to your facility. TagBuilder is not responsible for any actions taken based on this information.
A medical gas zone valve box label should name the gas or vacuum, list the specific rooms or spaces that valve serves, and carry a caution not to close or open the valve except in an emergency. If the system runs at a nonstandard pressure, the label should also state the operating pressure. Check the edition of NFPA 99 your jurisdiction has adopted, plus any state amendments, because the details can differ.
Why vague zone valve labels cause real problems
A zone valve exists so staff can isolate one area of a piped system quickly. In a fire, or when a line is damaged, someone has to decide which valve to close. They make that decision from the label, often under stress and often without the as-built drawings in hand.
If the label is vague, two things can happen. Someone closes the valve and cuts oxygen to patients who were never meant to lose it, such as recovery bays that were added to an old OR zone. Or they hesitate because they cannot tell which valve covers the affected room, and the response slows down. Surveyors and verifiers tend to cite labels that are general, out of date or inconsistent with the rooms actually served.
The fix is not complicated. It is an accurate room list, written out, on every valve, and kept current.
What NFPA 99 asks the label to say
For Category 1 piped systems, the valve labeling provisions of NFPA 99 are found in the section commonly numbered 5.1.11.2 in recent editions. Confirm the number and the wording in the edition your jurisdiction has adopted. Some states, California among them, adopt the provisions through their own plumbing or building codes with amendments. In your own words, the provisions ask for the following:
- Gas or vacuum identification. Each shutoff valve is labeled with the name or symbol of the gas or vacuum it controls.
- Rooms or areas served. The label identifies the specific rooms or areas the valve supplies. For zone valve boxes, the box itself is labeled with the rooms or spaces served.
- A caution. The label tells people not to close or open the valve except in an emergency.
- Operating pressure, where it is nonstandard. If a system runs at a pressure other than the standard one for that gas, the pressure is added to the label.
Accreditation guidance commonly adds two points about the room list. A grouped range such as "Rooms 1-6" should not be used if one of those rooms is not actually served, and a general area name such as "Surgery" or "North Wing" is not specific enough on its own. Many AHJs expect room numbers as they appear on the door, not departmental nicknames.
Source, main, riser, branch and service valves
Zone valves get most of the attention, but the other valves in the system are labeled too. The wording changes with the job the valve does. The table below lists each valve type, the wording that commonly goes on its label, and what the room or area line should contain.
| Valve type | Typical label wording | Room or area line |
|---|---|---|
| Source valve | SOURCE VALVE, gas name, CAUTION line | Source equipment served, such as the bulk supply or the manifold |
| Main line valve | MAIN VALVE, gas name, CAUTION line | The building or buildings the main feeds |
| Riser valve | RISER VALVE, gas name, riser ID, CAUTION line | Floors served and the rooms on each floor |
| Zone valve | ZONE VALVE, gas name, CAUTION line | Every room served, listed by number |
| Service valve | SERVICE VALVE, gas name, CAUTION line | The equipment or branch it isolates |
Whether a valve is called a main, riser or branch valve depends on the system layout, so match the names on the label to the names on your drawings and in your facility documentation.
Colors: match the gas
Medical gas identification uses a color scheme that is carried in NFPA 99 and the gas-identification standards it references. The pairings below are the ones most facilities see. Verify them against the current table in your adopted edition before you order, since the scheme covers more gases than the ones shown here.
| Gas or vacuum | Letter color | Background |
|---|---|---|
| Oxygen | White | Green |
| Medical air | Black | Yellow |
| Medical-surgical vacuum | Black | White |
| Nitrous oxide | White | Blue |
| Nitrogen | White | Black |
Engraved two-ply plastic suits this work because the contrast is cut into the plate, and engraved text does not rub off like printed ink. For oxygen, a stock MEDICAL GAS label in white on green is available in a 4 x 2 inch size with mounting holes.
Worked example: one zone valve box, three gases
Say a zone valve box in the corridor outside Surgery serves three gases. After a renovation, it feeds three operating rooms and two recovery bays. This is the label set, line by line. Letter heights are our suggestion for readability, not a code value. Keep the gas name large enough to read from a few feet back, and keep the room list readable without leaning in.
Box label (one plate per box)
- ZONE VALVE BOX ZV-2A (about 1/4 in letters)
- SERVES: OR 1, OR 2, OR 3, PACU BAY 1, PACU BAY 2 (about 3/16 in letters)
- LEVEL 2, SURGERY SUITE (about 3/16 in letters)
Valve labels (one per valve inside the box)
- OXYGEN, white on green. ZONE VALVE ZV-2A. ROOMS SERVED: OR 1, OR 2, OR 3, PACU BAY 1, PACU BAY 2. CAUTION: DO NOT CLOSE OR OPEN EXCEPT IN AN EMERGENCY.

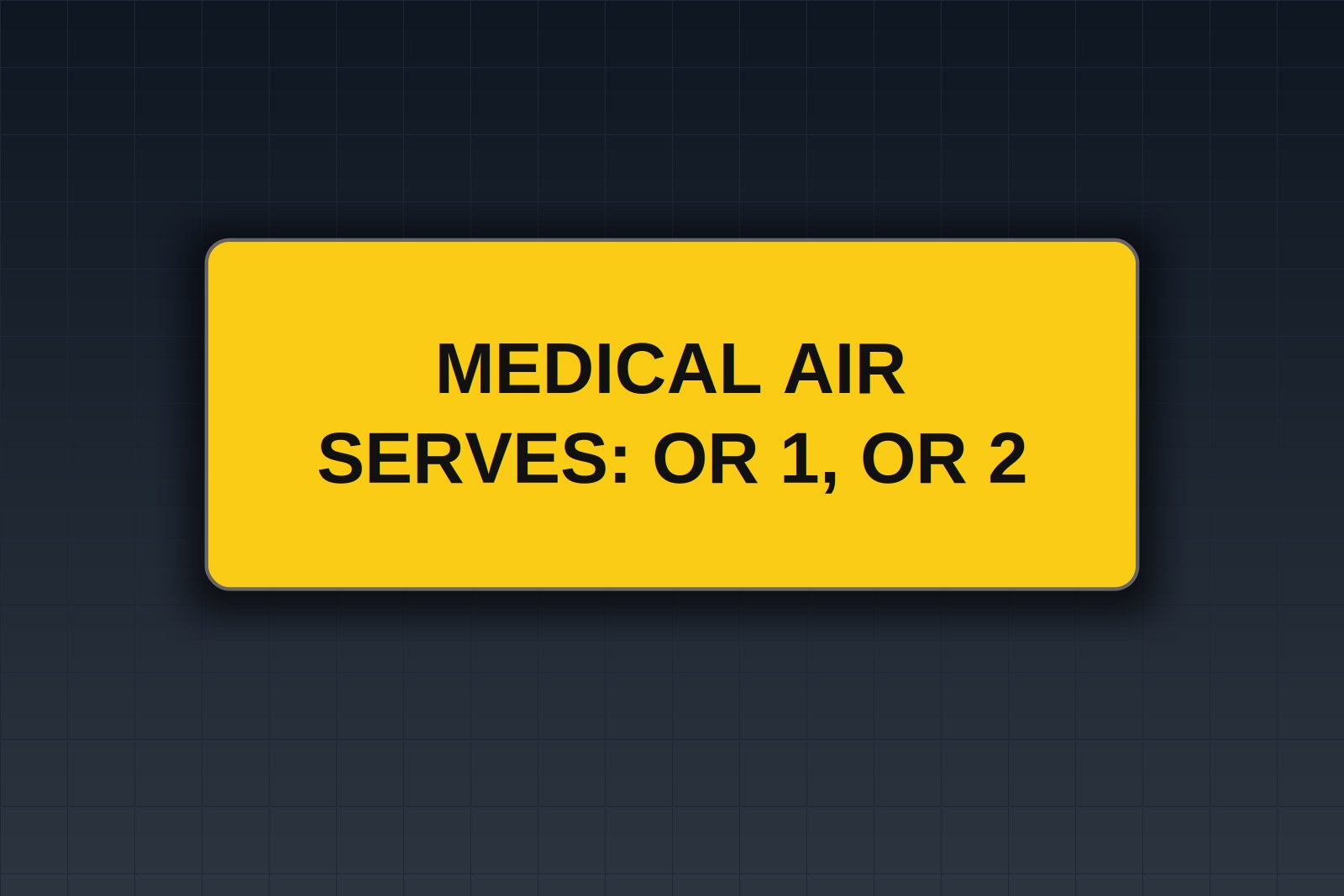

- MEDICAL AIR, black on yellow. ZONE VALVE ZV-2A. ROOMS SERVED: same list. Same caution line.
- VACUUM, black on white. ZONE VALVE ZV-2A. ROOMS SERVED: same list. Same caution line.
If the vacuum zone is split differently from the gas zones, which happens, then it gets its own room list. Do not copy the oxygen list across without checking the drawings.
Riser valve label
- OXYGEN, white on green. RISER VALVE R-2. FLOORS SERVED: LEVEL 2 (ROOMS 201-214 EXCEPT 209, 210), LEVEL 3 (ROOMS 301-318).
- CAUTION: DO NOT CLOSE OR OPEN EXCEPT IN AN EMERGENCY.
In this example, the room list leaves out rooms 209 and 210 because the riser does not serve them. That is the kind of exclusion a range alone would hide. Build your own room lists in the rectangle plate configurator, where you can enter each line of text and choose the color pairing.
Rooms change, so labels should too
Renovations move walls, split rooms and renumber doors. A zone valve label that was right at commissioning can be wrong two years later without anyone touching the valve. A few habits keep that from happening:
- Add a label check to your renovation closeout, so any change to rooms served triggers a review of the affected valve boxes.
- Walk the zone with the as-built drawings before a survey or a verifier visit, and read each label against the drawing.
- Replace a label when the room list changes, instead of marking over it. A handwritten correction on a plate is a finding waiting to happen.
Engraved labels are quick and inexpensive to re-issue, so there is little reason to leave a wrong one on the wall. Keep your room lists in a spreadsheet so a changed row becomes a new plate.
Frequently Asked Questions
What does a medical gas zone valve box label need to say?
Under the NFPA 99 provisions described above, it should name the gas or vacuum, list the rooms or spaces served, and carry a caution not to close or open the valve except in an emergency. Add the operating pressure when the system is nonstandard. Confirm the wording against your adopted edition and local amendments.
Can I label a zone valve box "OR area" or "Surgery"?
General area names are commonly cited because they do not tell someone which rooms lose gas. List the room numbers. If a department name helps, add it as a second line, not as a replacement.
Is it acceptable to use a range like Rooms 1-6?
Only if every room in the range is served by that valve. If one room in the span is on a different zone, list the rooms individually or write the exclusion out. Accreditor guidance warns against ranges that include an unserved room.
When does the operating pressure go on a medical gas label?
When the system operates at a pressure other than the standard one for that gas, the label should give the pressure. Your design engineer and the verifier can tell you which of your systems fall in that category.
What colors are used for oxygen, medical air and vacuum labels?
Oxygen is commonly white letters on green, medical air black on yellow, and vacuum black on white. Check the current color table in your adopted edition, because other gases and other editions can differ.
How often should zone valve labels be checked?
NFPA 99 does not set a labeling schedule that we would paraphrase here, so follow your facility's policy and your AHJ. As a practical matter, check them before a survey or verifier visit and after any renovation that changes rooms served.
