WARNING / INVERTER OUTPUT CONNECTION / DO NOT RELOCATE THIS BREAKER Warning Label – 4" × 2" Black on Orange

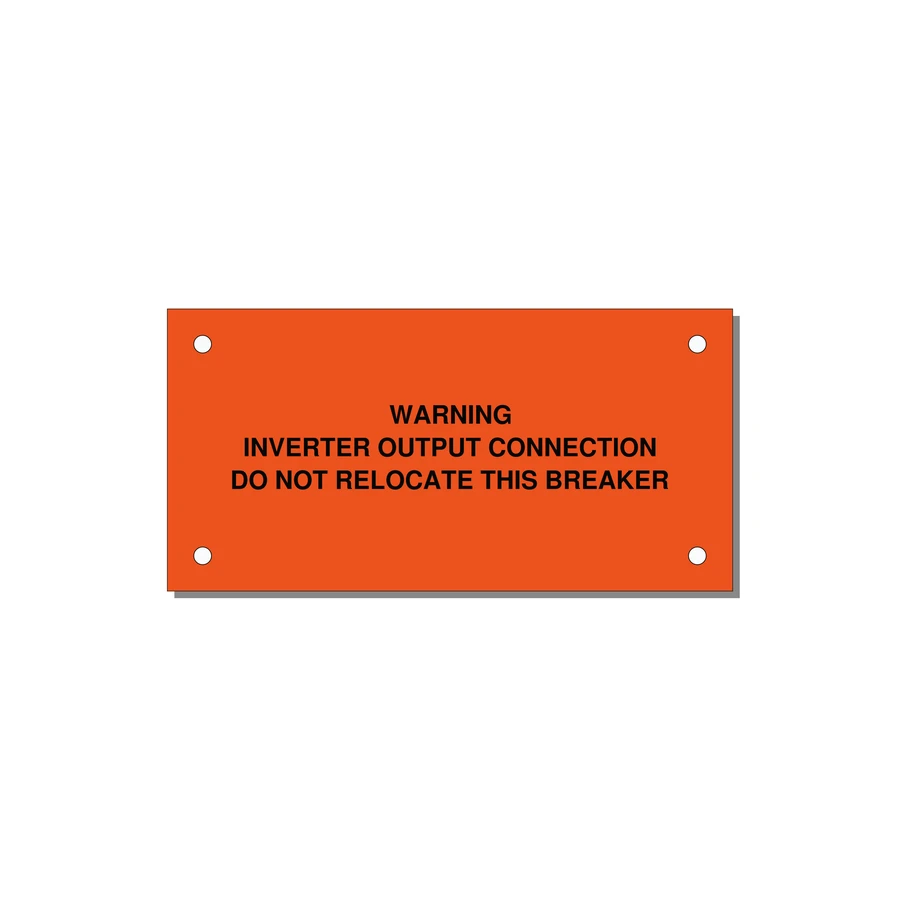

A 4" × 2" label engraved "WARNING / INVERTER OUTPUT CONNECTION / DO NOT RELOCATE THIS BREAKER" in black text on an orange background. A "WARNING / INVERTER OUTPUT CONNECTION / DO NOT RELOCATE THIS BREAKER" label keeps the next electrician from shuffling the solar breaker.

For use beside the backfed solar inverter breaker in a main or sub panel.

Identifies a breaker as the point where the solar inverter ties into the panel, and tells people not to move it to another position. Moving it can overload the busbar or defeat the way the panel was set up.

Where it's used: Placed beside or on the backfed breaker in the main or sub panel that receives inverter output, usually at the end of the bus opposite the incoming supply.

• Wording: "WARNING / INVERTER OUTPUT CONNECTION / DO NOT RELOCATE THIS BREAKER" (3 lines, bold lettering)
• Size: 4" × 2" (102 × 51 mm), the most popular size for equipment, panel and door labels.
• Color: Black text on an orange background. Black on orange is commonly used for warning-level markings and stands out on grey equipment.
• Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
• Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
• Corners: Square-cut corners and clean edges.

Mark the breaker position, not just the panel cover, so the label stays with the breaker when the cover is removed. Usually ordered by solar installers and electrical contractors. Also called: backfed breaker label, inverter breaker warning, do not relocate breaker label.

Need different wording, a color change or another size? Press Customize on this page to edit this design; there's no minimum order. Each piece is made to order in Waterford, PA (Erie County) and ships in 2–4 business days.
