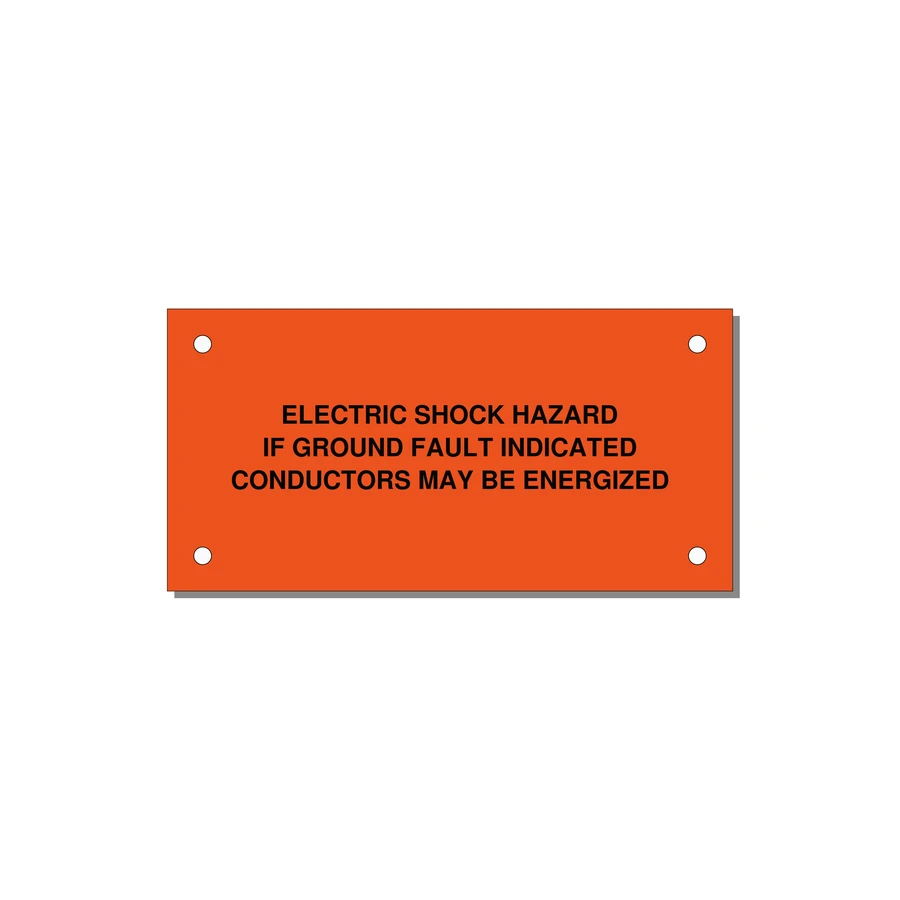

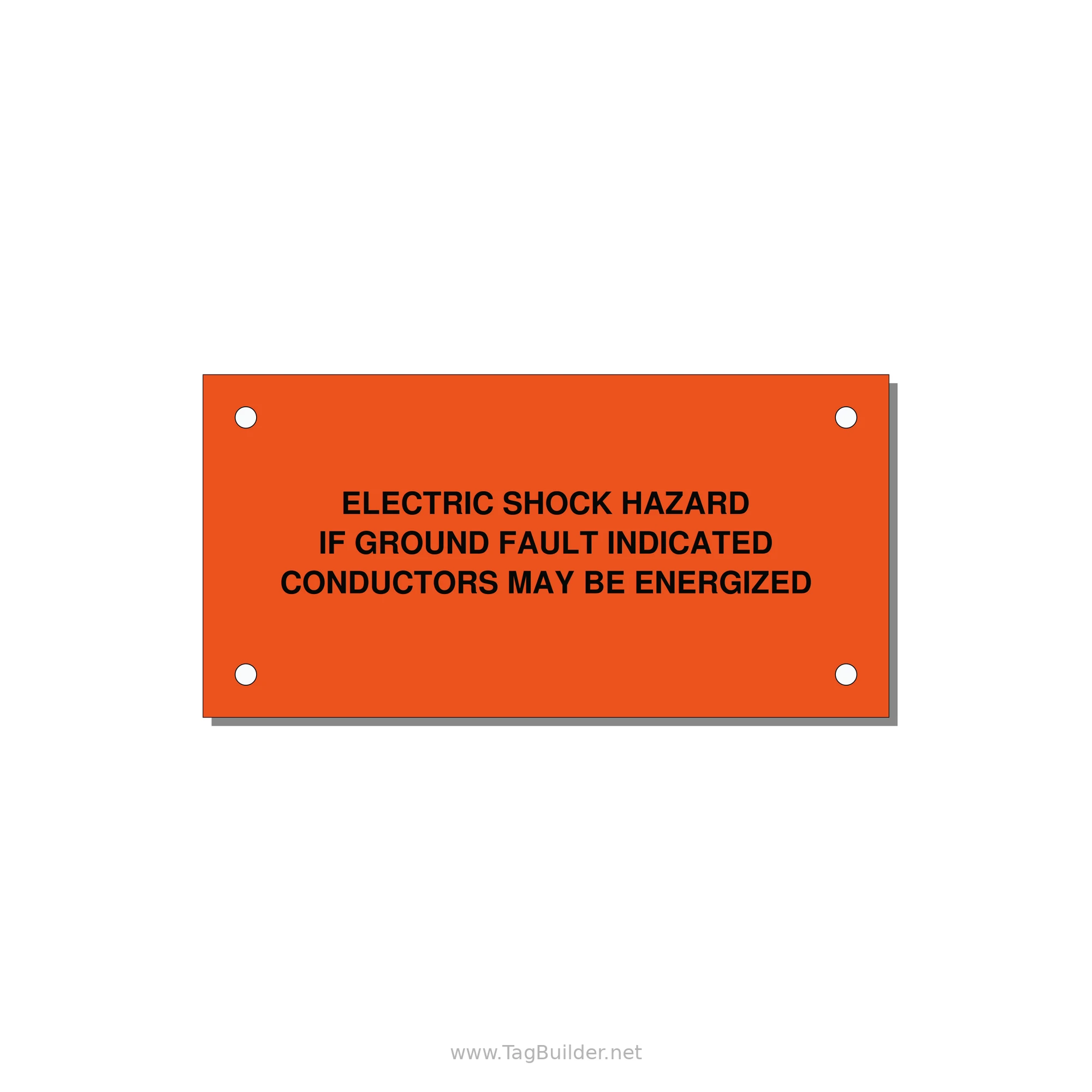

ELECTRIC SHOCK HAZARD / IF GROUND FAULT INDICATED / CONDUCTORS MAY BE ENERGIZED Warning Label – 4" × 2" Black on Orange
TB-RCT-40X20-BO-H-BC30CB
"ELECTRIC SHOCK HAZARD / IF GROUND FAULT INDICATED / CONDUCTORS MAY BE ENERGIZED" label, 4" × 2": black text on an orange background, engraved so the wording lasts. Pre-drilled mounting holes.
Shipping at checkout
Description
"ELECTRIC SHOCK HAZARD / IF GROUND FAULT INDICATED / CONDUCTORS MAY BE ENERGIZED" label, 4" × 2": black text on an orange background, engraved so the wording lasts. The "ELECTRIC SHOCK HAZARD / IF GROUND FAULT INDICATED / CONDUCTORS MAY BE ENERGIZED" label explains what a fault alarm means for the wiring.
For use on solar inverters, array disconnects and DC conductor entry points.
Says that when the system shows a ground fault, wires normally considered safe may be live. It tells the reader not to assume a conductor is dead just because it is usually grounded.
Where it's used: Typically placed on or near the inverter, the array disconnect and the point where DC conductors enter a building, especially on systems with ground-fault indicators.
- Wording: "ELECTRIC SHOCK HAZARD / IF GROUND FAULT INDICATED / CONDUCTORS MAY BE ENERGIZED" (3 lines, bold lettering)
- Size: 4" × 2" (102 × 51 mm), the most popular size for equipment, panel and door labels.
- Color: Black text on an orange background. Black on orange is commonly used for warning-level markings and stands out on grey equipment.
- Mounting: Pre-drilled holes in the corners for screws or rivets, for a permanent fix on panels, doors and equipment.
- Material: 1/16" (1.6 mm) two-ply engraving plastic with a matte finish. The wording is engraved through the top color to the contrasting core, so it can't rub off like printed ink.
- Corners: Square-cut corners and clean edges.
Place it where the fault indicator is visible, so the warning and the alarm are seen together. Usually ordered by solar installers and electrical inspectors' contractors. Also called: ground fault warning label, PV shock hazard label, conductors energized label.
Want it to say something else, or in a different color or size? Customize opens this exact design so you can change it, and you can order one piece or a few hundred. Made to order in Waterford, Pennsylvania and shipped in 2–4 business days.
