Data Center PDU, RPP and Breaker Labeling: NEC 110.22 and TIA-606 in Practice

An electrician traces a tripped breaker back through a PDU with no directory, a curled paper label, and a whip that isn't marked at either end. In a hot aisle at 2 a.m., that's the difference between a five-minute fix and a two-hour outage.

The Two Rulebooks That Meet at the PDU

Data center power labeling sits at the intersection of two documents that don't talk to each other directly. The National Electrical Code (NEC) sets legal minimums for identifying disconnects, circuits, and hazards — it's what an inspector or AHJ checks. TIA-606-D is an infrastructure administration standard, written primarily for telecom and network cabling, that many data center engineering specs extend to power gear so a rack's power path uses the same coordinate and naming logic as its network path. Neither one replaces the other. A PDU can be fully NEC-compliant and still be a nightmare to trace if nobody applied a consistent naming scheme, and a beautifully labeled TIA-606 identifier scheme doesn't satisfy 110.22 if the required markings aren't actually on the equipment.

The practical approach is to run both at once: NEC markings for what the code requires, TIA-606-D-style identifiers for what your team actually reads off the label to find the right breaker at 2 a.m.

NEC 110.22 and 408.4: Every Disconnect Identified, Every Circuit Traceable

110.22(A) requires each disconnecting means to be legibly marked to indicate its purpose, unless that purpose is evident. In a data center this means every PDU main breaker, every RPP (remote power panel) main, and every branch breaker feeding a rack or a row needs a label that says what it disconnects — not just a number, but a purpose a technician can act on without pulling a one-line diagram.

110.22(C) goes further for series-rated combinations: where equipment is applied using series combination ratings, the equipment must be field marked with the maximum available fault current, the specific series-rated devices, and a caution about replacing components with listed equivalents. Series ratings are common in PDU-to-RPP-to-panel chains, so check whether this applies before assuming a generic disconnect label covers it.

408.4 covers the panelboard directory. Every circuit or circuit modification must be legibly identified for its purpose on a directory located at the panel — this is the card inside the RPP door listing what each breaker feeds. Where a panelboard or PDU distribution section is supplied through a feeder from another panel or PDU, 408.4(B) requires a permanent marking identifying that source — the classic FED FROM plate. In a data center with PDU-to-RPP-to-panel chains, that FED FROM marking is what lets someone standing at RPP-1A-2 find their way back to PDU-1A without a laptop. See the NEC 408 panel labeling guide for the directory requirements in more depth.

Hazard and Fault-Current Marking Under 110.16 and 110.24

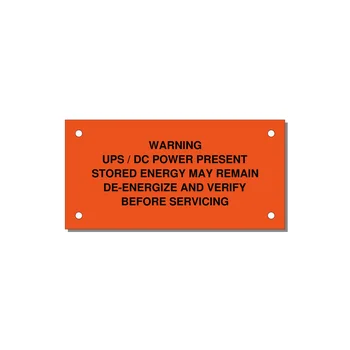

110.16 requires equipment likely to require examination, adjustment, servicing, or maintenance while energized — which describes most PDUs and RPPs — to carry a field- or factory-applied label warning of potential arc flash hazards. It does not, by itself, require the incident energy value or PPE category on the label; that level of detail comes from an arc flash study performed under NFPA 70E. Many data centers put both the code-minimum warning and the study-derived incident energy on the same plate so the two documents don't drift apart. If that study hasn't been done or is out of date, don't guess at the numbers — flag it.

110.24 applies to service equipment in other than dwelling units and requires legible field marking with the maximum available fault current, the date the fault-current calculation was performed, and a note that the equipment must be re-marked if modifications affect the available fault current. Data centers add generators, UPS modules, and additional PDUs over their life, and each of those changes can move the fault-current number — the marking has to keep up or it's stale and technically noncompliant.

• 110.22 — every disconnect labeled with its purpose
• 408.4 — panel directory current, FED FROM marking on downstream panels
• 110.16 — arc flash hazard warning on equipment worked on while energized
• 110.24 — available fault current, calculation date, re-mark on modification

TIA-606-D: A Naming Scheme for Power

TIA-606-D's core contribution isn't a specific power label format — it's a discipline for identifiers: every piece of infrastructure gets a unique, structured designator that encodes location and function, so a string of characters tells you where something is without a lookup table. Facilities that already use TIA-606-D for network patch panels and cabinets get real value extending the same logic to power: PDU, RPP, panel, breaker, whip, and rack coordinate all follow one scheme, so a technician who knows the rack naming convention can decode the power labels without training.

Because TIA-606-D is a telecom standard first, treat its application to power as a facility convention you're adopting for consistency, not a code requirement in itself — confirm your engineering spec and current edition before citing it in a compliance document.

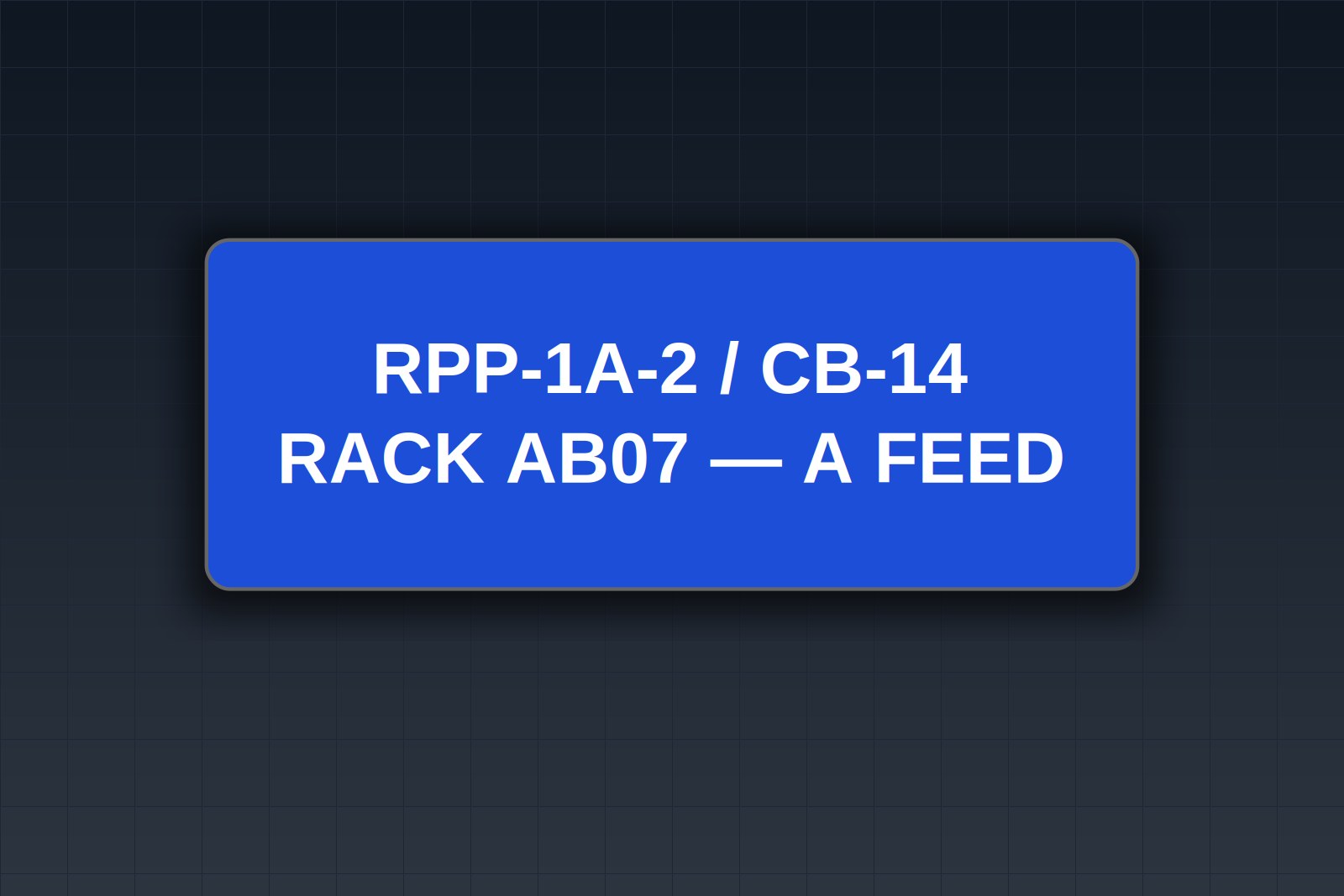

A Worked Example: PDU-1A to Rack AB07

Here's a naming scheme built on TIA-606-D logic, applied to a typical A/B redundant power path:

The B-side feed mirrors this exactly — PDU-1B, RPP-1B-2, CB-14, WHIP-1B-14, AB07-B — so a tech standing at the rack can read AB07-A and AB07-B off the two whips and know immediately which PDU, which RPP, and which breaker each one traces back to, in either direction.

What Gets a Label and What It Says

Some of this table is code-required, some is house convention layered on top for traceability. Keeping them on the same physical plate, in the same font and layout, is what makes a walk-down fast instead of a scavenger hunt. The panel nameplate shop and breaker plate configurator both handle this identifier length without truncation.

A/B Feeds, Colors, and Matching Plates Down the Whip

Most data centers color-code A and B feeds so a tech can tell them apart across a room without reading text — commonly orange or red for A and blue for B, though the specific pair varies by facility and there's no single code-mandated standard, so document whatever convention your facility uses and stick to it. The important part isn't which colors you pick, it's that the color and the identifier match at every point in the path — PDU, RPP, breaker, whip, and rack drop all carry the same A or B marking in the same color family. A mismatch between what's painted on the PDU and what's printed on the whip is exactly the kind of error that gets found during an outage, not during a walk-down.

Why Engraved Plates Outlast Printed Labels in the Hot Aisle

Hot aisle containment runs warm, and PDU and RPP enclosures see real heat cycling on top of that. Printed labels — adhesive vinyl, laminated paper, thermal-transfer tape — curl, yellow, and delaminate under sustained heat, and the adhesive lets go entirely after enough cycles. Cabinet handling during moves, adds, and changes abrades printed labels at the edges first, which is usually where the identifier text sits.

Engraved two-ply plastic doesn't rely on adhesive holding printed ink to a surface — the identifier is cut through a colored cap layer into a contrasting core, so the text survives heat, UV from cabinet lighting, and the friction of techs' hands and tools over years of service. The same logic applies to arc flash labels, which need to stay legible for the working life of the equipment, not just through the first inspection. For raised-floor and colocation environments generally, see the engraved phenolic tags guide for a broader look at where engraved labeling holds up better than printed alternatives.

Frequently Asked Questions

Does NEC require a specific label format for data center PDUs?

No. The NEC requires that disconnects be legibly marked to indicate purpose (110.22), that panel directories be current (408.4), and that hazard and fault-current information appear where applicable (110.16, 110.24) — but it doesn't dictate font, color, or layout. Format is left to the facility, which is exactly where a TIA-606-D-based scheme fills the gap.

Is TIA-606-D mandatory for data centers?

No, it's a voluntary administration standard, most directly applicable to telecom cabling infrastructure. Facilities adopt it for power labeling by convention, usually because they're already using it for network infrastructure and want one consistent identifier logic across the room. Check your facility's engineering specification and the current edition before treating it as a hard requirement.

What does FED FROM actually need to say?

At minimum, enough to identify the upstream source — the panel or PDU the equipment is supplied from. In practice, most facilities also include the feeder rating so a tech can confirm the upstream breaker size without opening another panel. Confirm the exact wording your AHJ expects, since interpretation varies.

How often does fault-current marking need to be updated?

Per 110.24, whenever a modification affects the maximum available fault current — adding generation capacity, reconfiguring UPS topology, or upstream utility changes are common triggers in data centers. There's no fixed re-marking interval; it's tied to the modification, not the calendar.

Can one plate cover both the NEC-required marking and the TIA-606-D identifier?

Yes, and it's the more practical approach — a single engraved plate with the purpose description, hazard warning where required, and the structured identifier (PDU-1A, RPP-1A-2, and so on) keeps the code-required content and the facility naming scheme from drifting apart on separate labels.

What's the difference between labeling a whip and labeling the rack drop?

The whip label identifies the circuit at the source end — which breaker and PDU it originates from. The rack drop label identifies the destination — which rack and which side (A or B) it feeds. Matching identifiers at both ends is what lets a tech trace the run in either direction without following the cable physically.

Getting the identifier scheme right on paper is only half the job — it has to survive the hot aisle and years of cabinet handling once it's mounted. Start with the panel labeling requirements under NEC 408 for the directory and FED FROM basics, then build out the full PDU-to-rack set in the breaker plate configurator using your facility's actual identifiers.
