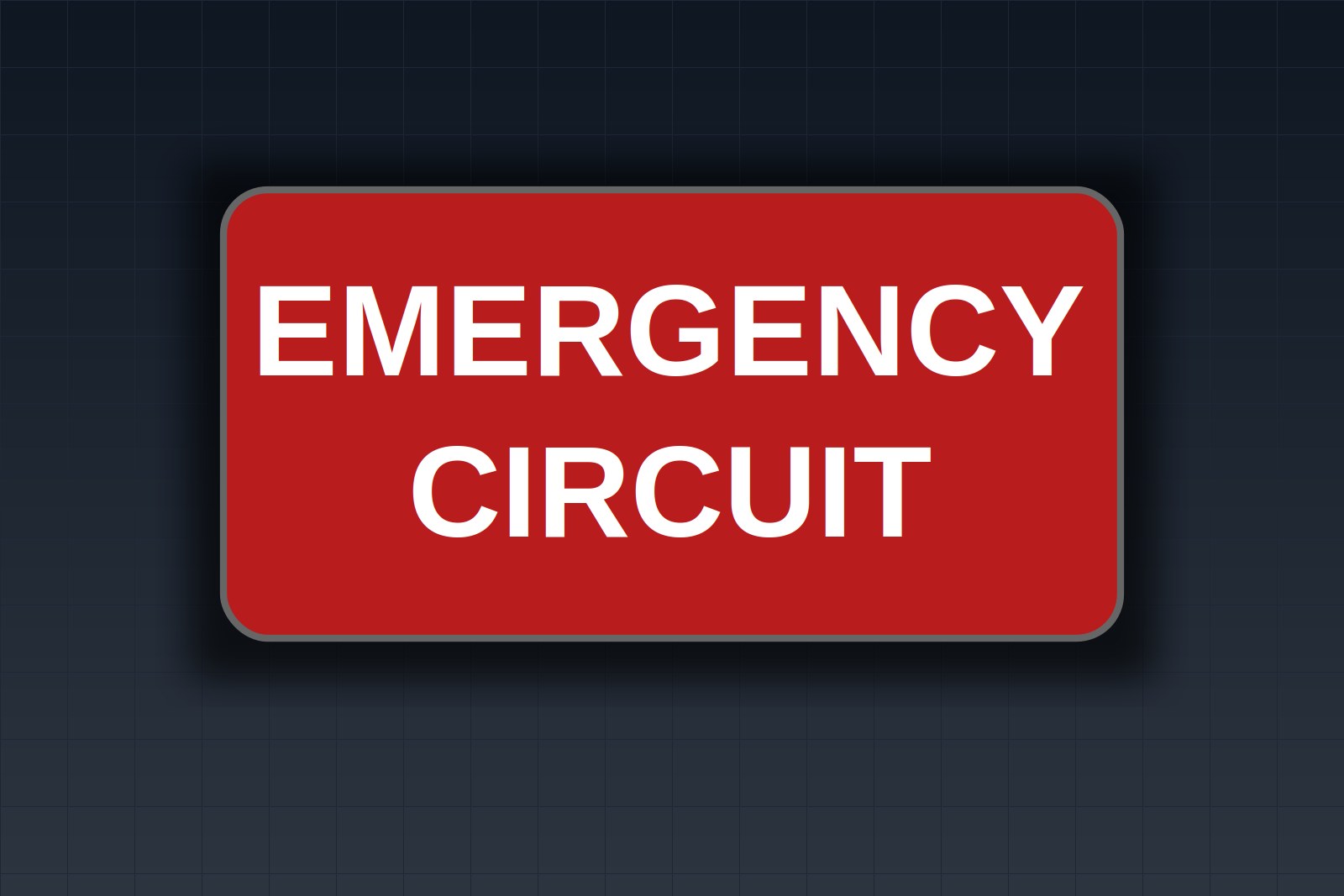

Emergency Lighting and Exit Sign Circuit Labels: NEC 700 Identification

The final walkthrough is tomorrow, the egress lighting works, and nobody can tell which breakers and junction boxes belong to the emergency system. An unmarked box or a vague directory line becomes a punch-list item, and a wrong breaker opened during maintenance leaves a corridor dark.

Short answer: NEC 700.10(A) calls for emergency system boxes and enclosures to be permanently marked so they are readily identified as part of the emergency system, and many AHJs and project specs expect red plates or tags. Put a plate on each emergency panel, tag each emergency junction box cover, and identify the unit equipment branch circuit on the normal panel directory. Subsection numbering and wording change between editions, so check the edition your jurisdiction has adopted.

What the code asks you to identify

This article covers the egress lighting and exit sign side of Article 700. For the generator and transfer switch signs, see the generator and ATS labeling guide.

In plain terms, the emergency system rules push three things onto the label list:

• Boxes and enclosures (700.10(A)). Panels, transfer equipment and boxes that are part of the emergency system are permanently marked so a person opening one knows what it is. Red is the common color in specs and with many AHJs. The code text itself leaves the color to the spec and the AHJ.
• Independent wiring (700.10(B)). Emergency circuits are kept separate from normal wiring, with limited exceptions. A label does not create that separation, but a clear tag on every box shows an inspector and a future electrician where the emergency conductors are.
• Unit equipment feeds (700.12). The branch circuit that feeds battery-pack units is commonly the same circuit that serves the normal lighting in that area, connected ahead of any local switches, and the circuit is identified at the panel. Check the subsection and wording in your edition.

Table 1: what to mark, where, and with what text

Table 1: Emergency lighting and exit sign identification items.

Emergency panels and the red plate

The panel plate answers one question: is this part of the emergency system, and where does it get its power? Keep it to three short lines. Name the panel, say what it serves, and name the source.

If the panel is fed from a transfer switch, say so on the plate. A person tracing a dead circuit then goes to the right equipment first. You can order the 4 x 2 inch white-on-red emergency power plate as it is, or change the text in the configurator to carry your panel name and source.

Exit signs, egress lights and junction boxes

Exit signs and egress fixtures usually share a circuit with other emergency loads. The directory entry should name the load and the area, not just the word emergency. EXIT SIGNS CORR 1E beats EM CKT 5 every time.

Junction boxes are where labels get skipped. A box above a ceiling tile looks like any other box. A red cover tag fixes that for the next person with a ladder.

• Use a 1-inch round red tag when the cover is small and the text is short: EM, panel, circuit number.
• Use a 2 x 1 inch red tag when you want the area on it as well.
• Put the tag where it stays visible with the cover on and the ceiling closed.
• Engraved text does not rub off the way printed ink does, which matters on boxes that get handled during later work.

Unit equipment: the circuit that looks normal

Battery-pack units are the case that trips people up. The unit is wired to a normal lighting circuit, so the circuit does not live on the emergency panel. The unit needs to see the normal circuit drop out to switch on, and that is why the feed sits ahead of local switches.

The risk is a maintenance worker who switches off the normal lighting breaker to work on a fixture, not knowing it also feeds the battery packs in that corridor. The directory line and, if the spec asks, a small plate at the breaker close that gap. If you are labeling the rest of the normal panel too, the NEC 408 panel labeling guide covers directories and circuit identification. A 3 x 1 inch white-on-blue normal power plate fits the normal panel front, and you can order it as-is or edit the text.

Worked example: a school corridor wing

This is a copyable set for an emergency panel EM-1 and a normal panel LP-2 in a school. Adjust the names to your drawings.

Plate 1: emergency panel EM-1

Size 4 x 2 inches, white text on red, mounting holes. Text, line by line:

• EMERGENCY PANEL EM-1
• LIFE SAFETY - EGRESS LIGHTING
• FED FROM ATS-1

EM-1 circuit directory

• CKT 1 - EGRESS LTG CORR 1E
• CKT 3 - EGRESS LTG CORR 1W
• CKT 5 - EXIT SIGNS CORR 1E
• CKT 7 - EXIT SIGNS CORR 1W
• CKT 9 - EGRESS LTG STAIR A
• CKT 11 - EXIT SIGNS STAIR A

Plate 2: junction box cover tags

Red, white text. One-inch round: EM / EM-1 / CKT 1. Or 2 x 1 inch, three lines: EMERGENCY / EM-1 CKT 1 / CORR 1E.

Plate 3: normal panel LP-2

Size 3 x 1 inch, white on blue. Two lines: NORMAL POWER / PANEL LP-2. In the LP-2 directory, the unit equipment feed reads:

• CKT 23 / NORMAL LTG + EM UNITS CORR 1E

Healthcare and other life safety work

Hospitals and similar facilities follow NEC Article 517 for the life safety branch and critical branches, alongside NFPA 99 and the facility's own rules. The branch names and the marking expectations are more detailed than in a school or warehouse. Work from the current edition and the facility's engineer, and ask the AHJ which branch names and colors they expect on plates.

Frequently Asked Questions

UL, NFPA, NEC, ASME, CEMA, TIA, ANSI and OSHA are names or marks of their respective organizations; TagBuilder is not affiliated with or endorsed by any of them. Requirements above are paraphrased summaries, not the text of any standard. Always work from the current published edition and your AHJ.
