Car Wash Equipment Room Labels: Pumps, Valves, Chemical Lines and Control Panels
Your equipment room has a dozen chemical lines, three pumps that sound alike and a roll of masking tape that quit sticking in March. The next new attendant will guess, and a wrong guess costs a bay or a car.
Short answer: label every pump, chemical line, water valve, panel device and disconnect with a short, fixed name that matches the name on your equipment list. Use engraved plastic or stainless tags held on with screws, chain or zip ties, not adhesive on wet surfaces. Keep the wording identical from the tag to the panel legend to the work order.
Important Disclaimer
This article is provided for general informational purposes only and does not constitute legal, safety, or professional compliance advice. Regulations, standards, and codes are subject to change and may be interpreted differently by authorities having jurisdiction (AHJ). Always consult with qualified safety professionals, licensed engineers, or legal counsel to determine the specific requirements applicable to your facility. TagBuilder is not responsible for any actions taken based on this information.
What Goes Wrong When Car Wash Equipment Is Labeled Badly
A car wash equipment room is hard on labels. It is warm, humid and full of chemical mist, and hoses get wiped down and sprayed. Paper and tape labels curl, then fall behind a rack. Marker on a fitting washes off.
The failures are ordinary and specific:
- A new attendant primes the tire shine line when the arch is out of presoak, because both are the same blue tubing.
- A technician shuts the city water valve for the whole room when the job only needed the reclaim isolation valve closed.
- Someone presses the wrong stop button at the panel because the legends say "PUMP 1" and "PUMP 2" with no hint of which is high pressure.
- A reorder goes out for the wrong part because nobody can read what the old tag said.
None of this needs elaborate signage. It needs a naming scheme, a tag on every device, and a tag that is still readable in a year.
Pick a naming rule first
Use function, then unit number, then arch or bay: PRESOAK PUMP, HP PUMP 1, TRI-FOAM ARCH 2. Keep text to two lines. Use the same abbreviations everywhere, and put them in a one-page equipment list taped inside the panel door. Our guide to creating a valve numbering system covers the numbering side in more detail.
Pump Stations and Motors
Pumps are the easiest devices to confuse, because they are usually the same frame size and the same color. Label the pump itself and the motor starter or breaker that feeds it with the same words.

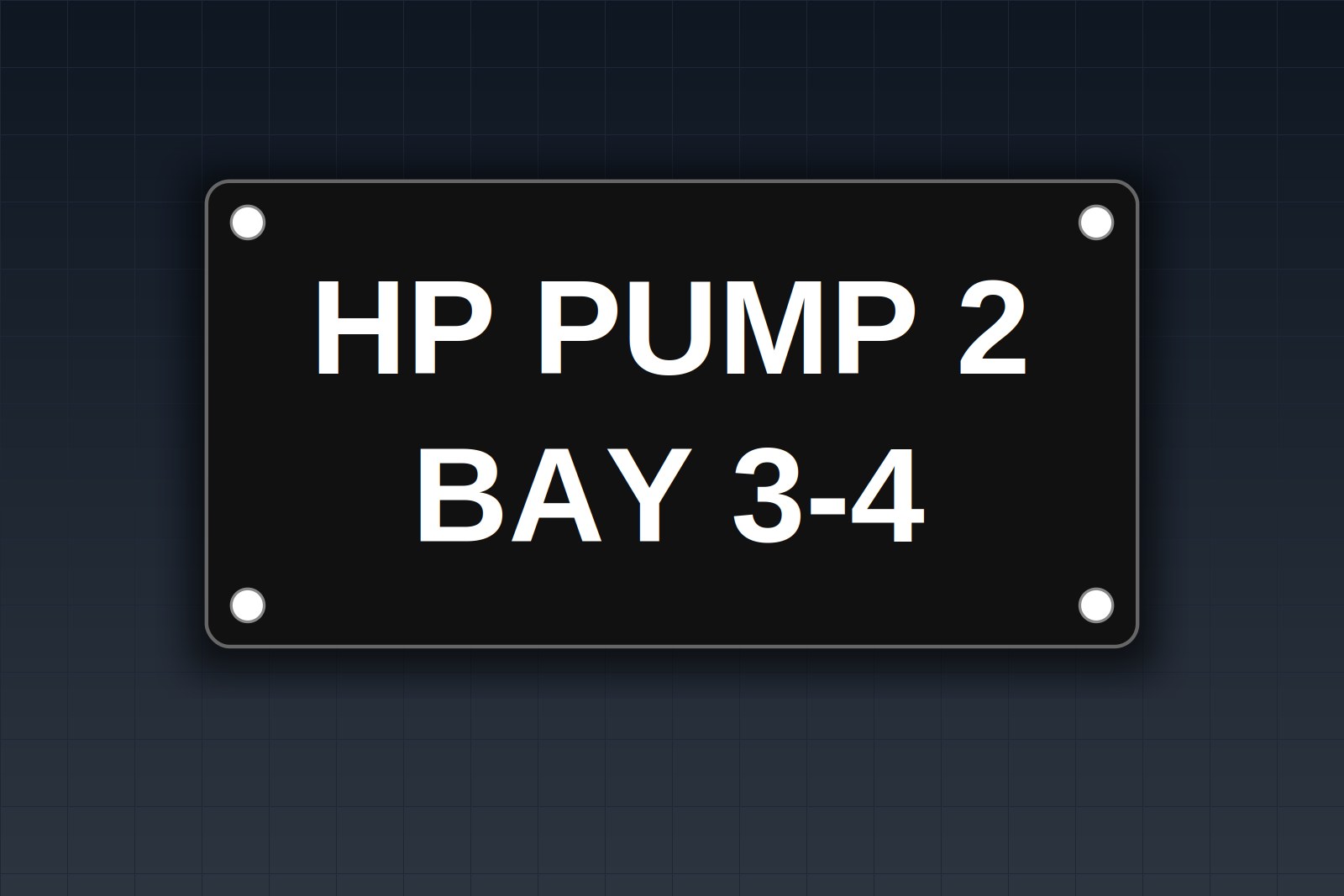

Common pump names are HP PUMP 1, HP PUMP 2, PRESOAK PUMP, RECLAIM PUMP, BOOSTER PUMP and RO FEED PUMP. If you have more than one of a kind, add the bay or arch, such as HP PUMP 2 BAY 2.
A rectangular plate with mounting holes works well on a pump base or skid. The 4 x 2 inch lead pump label in white on blue with mounting holes is a ready-made example of this style. For a smaller device such as a solenoid or a metering pump head, the 22mm ring tag marked PUMP fits where a plate will not. See also pump labels and tags for other sizes.
Chemical Lines and Dosing Points
This is where mix-ups cost the most. Label each line at both ends and at every point it passes through a wall, manifold or dilution station. A tag at the drum and a tag at the arch lets someone trace the line without pulling it.
Name the line by product and arch: PRESOAK, TRI-FOAM, WAX, TIRE SHINE, SPOT FREE. Add the arch number when the same product feeds more than one arch, such as TRI-FOAM ARCH 2.
Hang circle valve tags on the dilution valves and injectors, and use a rectangular plate at the manifold board. A 2 inch circle valve tag is a common size for a valve handle, and you can have your own wording engraved instead of DRAIN on the circle tag builder.
A note on SDS and containers. Safety data sheets and the labels on the chemical containers are separate obligations, normally handled by your chemical supplier and your written hazard communication program. Your line tags identify where a line goes inside your room. They do not replace container labels or SDS. Ask your supplier and check the current OSHA hazard communication rules for what applies to you.
Should you color code chemicals?
Color coding is a shop convention here, and a useful one if you keep it consistent. A common approach is one tag color per product family, with the product name always engraved as well, so nobody depends on color alone. Do not rely on color only, because some people cannot tell similar colors apart, especially under room lighting.
Water: City, Softened, RO, Spot-Free, Reclaim and Hot
Water lines look alike and are often shut off in the wrong order. Mark the type of water on the pipe and mark each isolation and drain valve with its own tag.
The table below lists typical water-side items, the tag text and the suggested tag type and attachment.
| Item | Tag text | Tag type and attachment |
|---|---|---|
| Main water inlet valve | CITY WATER MAIN | Circle tag, chain or stainless screw |
| Softener feed | SOFTENED WATER | Rectangular plate, screws or zip ties |
| RO feed isolation | RO FEED ISO | Circle tag, chain |
| Spot-free rinse line | SPOT FREE WATER | Rectangular plate, zip ties |
| Reclaim return valve | RECLAIM RETURN | Circle tag, chain |
| Hot water supply | HOT WATER SUPPLY | Rectangular plate, screws |
| Low point drain | RO DRAIN | Circle tag, chain |
Pipe color and arrow conventions are covered in our article on pipe marking and ASME A13.1. Check how that standard applies to your piping and which edition your AHJ or insurer uses.
Control Panels, Legends, E-Stops and Disconnects
The panel is where a wrong guess happens fastest. Put a legend on every pushbutton, selector and pilot light, and make the legend say what the device does and where.
- Start / stop: HP PUMP 1 START, HP PUMP 1 STOP.
- Selectors: HAND / OFF / AUTO, with the equipment name above. The selector switch label guide covers the wording.
- Bay and arch numbers: ARCH 1 PRESOAK, ARCH 2 TRI-FOAM.
- E-stop: at the tunnel entrance and in the equipment room, each marked EMERGENCY STOP, with a note of what it stops if that is not obvious from the location.
The 60mm E-stop legend plate for a 22mm device is the typical style. Which E-stops you need, and what they must stop, depends on your equipment maker's instructions, the current edition of the standards that apply and your AHJ. Ask before you assume.
Breakers and disconnects
Disconnects and breakers should be marked with the equipment they serve. NEC 110.22 deals with identifying disconnecting means, and the marking is expected to hold up in the environment involved. NEC 408.4 covers panelboard directories. Section numbers and wording change between editions, so check the one your jurisdiction has adopted. Use the same words as the pump tag: if the pump says HP PUMP 1, the breaker says HP PUMP 1.
What holds up in a wet room
Engraved two-ply plastic does not rub off the way printed ink can, and engraved stainless suits the harshest spots, such as near chemical dilution stations. Attach with stainless screws, a chain or a zip tie around the line. Avoid adhesive on any surface that is wet, oily or chemical-coated. Rinse and wipe tags during routine cleaning, and replace any that crack or loosen.
Worked Example: Tunnel Wash Equipment Room List
Copy this list line for line, then change the arch numbers and product names to match your system. Each line is one tag.
| Group | Tag text | Where it goes |
|---|---|---|
| Pumps | HP PUMP 1 | Pump skid and its breaker |
| Pumps | HP PUMP 2 | Pump skid and its breaker |
| Pumps | PRESOAK PUMP | Chemical pump and its starter |
| Pumps | RECLAIM PUMP | Reclaim tank pump and its starter |
| Chemical | PRESOAK ARCH 1 | Both ends of the line |
| Chemical | PRESOAK ARCH 2 | Both ends of the line |
| Chemical | TRI-FOAM ARCH 1 | Both ends of the line |
| Chemical | TRI-FOAM ARCH 2 | Both ends of the line |
| Chemical | WAX ARCH 1 | Both ends of the line |
| Chemical | WAX ARCH 2 | Both ends of the line |
| Chemical | TIRE SHINE ARCH 1 | Both ends of the line |
| Chemical | TIRE SHINE ARCH 2 | Both ends of the line |
| Chemical | SPOT FREE CONC | Dosing point |
| Chemical | DRYER AID | Dosing point |
| Water | CITY WATER MAIN | Inlet valve |
| Water | RO FEED ISO | RO isolation valve |
| Water | RO DRAIN | Low point drain |
| Water | RECLAIM RETURN | Return valve |
| Panel | HP PUMP 1 START / STOP | Pushbutton legends |
| Panel | PRESOAK PUMP H-O-A | Selector legend |
| Panel | EMERGENCY STOP | Panel door and tunnel entrance |
That is 21 tags, which one person can hang in an afternoon. Take a photo of the finished wall and keep it with the equipment list.
Frequently Asked Questions
How should I label car wash chemical lines?
Name each line by product and arch, such as PRESOAK ARCH 1 or TIRE SHINE ARCH 2, and put a tag at both ends and at every manifold or dilution point. Use a circle tag on valves and a rectangular plate at the board. Keep the wording the same as your equipment list.
What labels survive a car wash equipment room?
Engraved plastic and engraved stainless hold up better than tape or printed paper in humidity and splash because the text is cut into the material, not printed on top. Attach with screws, chain or zip ties instead of adhesive, and replace any tag that cracks or loosens.
Should I color code car wash chemicals?
You can, as a shop convention, as long as you use it consistently and always engrave the product name too. Color alone is easy to misread under room lighting. Check your chemical supplier's recommendations before you set the scheme.
How do I label car wash pumps?
Give each pump a function and number, such as HP PUMP 1, PRESOAK PUMP or RECLAIM PUMP, and put the same words on the pump, its starter and its breaker. Add the bay or arch if you have more than one of the same kind.
What should be on the E-stop at a tunnel wash?
The device should read EMERGENCY STOP, and it helps to add what it stops, such as CONVEYOR or ENTIRE TUNNEL, if that is not clear from where it sits. The number and location of E-stops depend on your equipment maker, the current standards and your AHJ, so confirm those with them.
Send one line or pump name, like TRI-FOAM ARCH 2, and we'll engrave a free sample tag to hang in your equipment room.
If you want to start with the valves, browse valve tags in stock sizes, or use the rectangular plate builder for panel legends and pump plates. You can also request a free sample to check the size and wording on your own line first.
